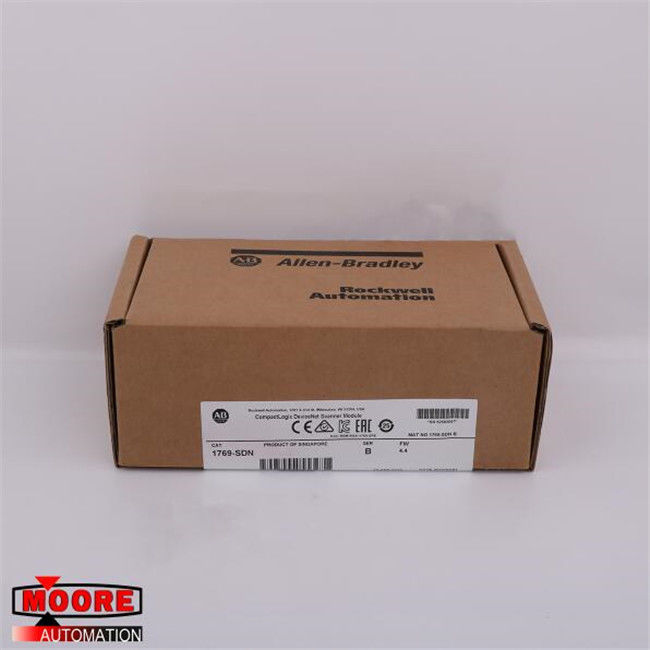

1769-SDN 1769SDN AB AB CompactLogix DeviceNet Scanner Module

1769-SDN 1769SDN AB AB CompactLogix DeviceNet Scanner Module

⇒ Click here for good price 1769-SDN

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB 1769-SDN is a PLC that operates as a CompactLogix DeviceNet Scanner Communication Module. Through the 1769-SDN, communication between the CompactLogix controllers, the MicroLogix 1500 programmable controllers, and the DeviceNet devices is possible. This module measures 118x 87 x 35 millimeters in dimensions, including its mounting tabs which is 138 mm. This module weighs approximately 280 grams or 0.61 pounds and has a maximum Bus Current Draw of 440 mA at 5 Volts DC (2.2 Watts) maximum heat dissipation of 3.8 Watts.

The 1769-SDN should not be installed anywhere that contains volatile or corrosive gas, vapors, or dust in the ambient atmosphere. The 1769-SDN has an operating temperature of 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit and it should not be stored anywhere in a corrosive atmosphere. The maximum cable distance between this module and the connected PowerFlex 4-Class drives is 10 meters. The maximum cable length must be 500 meters at 125K baud and 100 meters at 500K baud. The 1769-SDN cannot be located more than 4 modules away from the power supply, thus, it has a Power Supply Distance Rating of 4. Its DeviceNet power requirements are N.E.C. Class 2 90 mA at 11 Volts DC, 110 mA at 25 Volts DC, and 200 mA for 1.5 milliseconds. The 1769-SDN is able to read inputs and write outputs to and from slave devices, communicate with peer devices, and load programs to a 1764-LRP-based controller across a given DeviceNet network.
