| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1762-OB16 |

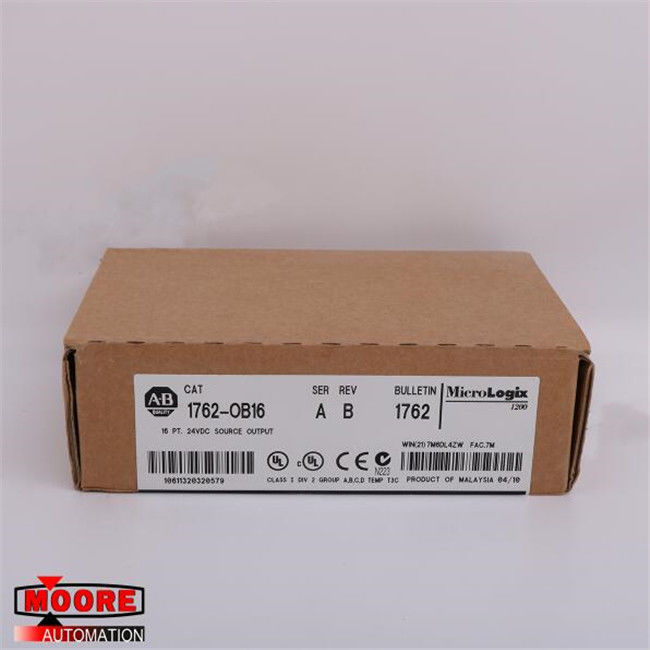

1762-OB16 1762OB16 AB AB MicroLogix 16 Point D/O Module
⇒ Click here for good price 1762-OB16
| Brand/Manufacturer | AB/USA |
| Part Number |
1762-OB16 |
| Alternate Part Number | 1762-OB16 |
| Description | MOTOR SERVO |
| Dimennsions |
17x11x5.3cm |
| Weight | 0.25kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1762-OB16 maximizes flexibility by increasing the I/O count and type capabilities of MicroLogix 1200 Programmable Controller Systems. This solid-state 24 Volt DC-rated source output module is part of the Bulletin 1762 MicroLogix Expansion I/O Module systems. It features an integrated high-performance bus, label-to-record terminal designations, software keying for improved accuracy in positioning, and finger-safe terminal blocks for wiring. The 1762-OB16 is an ideal solution for controller applications that require more I/O than the built-in ones the controller comes with. The 1762-OB16 Source Output Module expands the maximum number of I/O for MicroLogix 1200 controllers by a factor of six. It has a voltage category of 24 Volts DC, a maximum surge current of 2.0 A, a maximum bus current draw of 175 mA at 5 Volts DC (0.88 Watts), and a maximum continuous current of 4.0 A at 55 degrees Celsius (131 degrees Fahrenheit)/ 8.0 A at 30 degrees Celsius (86 degrees Fahrenheit) per module.
The 1762-OB16 comes with 16 digital outputs and one common output. This I/O module can be panel or DIN rail-mounted. A DIN rail end anchor is required for high vibration environments. Mount the 1762-OB16 to a well-grounded surface and maintain clearance from the adjacent equipment, enclosure walls, and the wireways. All sides should have 2 inches (50.8 millimeters) of space for adequate ventilation. The ideal maximum operating altitude for the 1762-OB16 is 2000 m (6561 feet) with humidity between 5 to 95% non-condensing.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
