| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1756-IA16I |

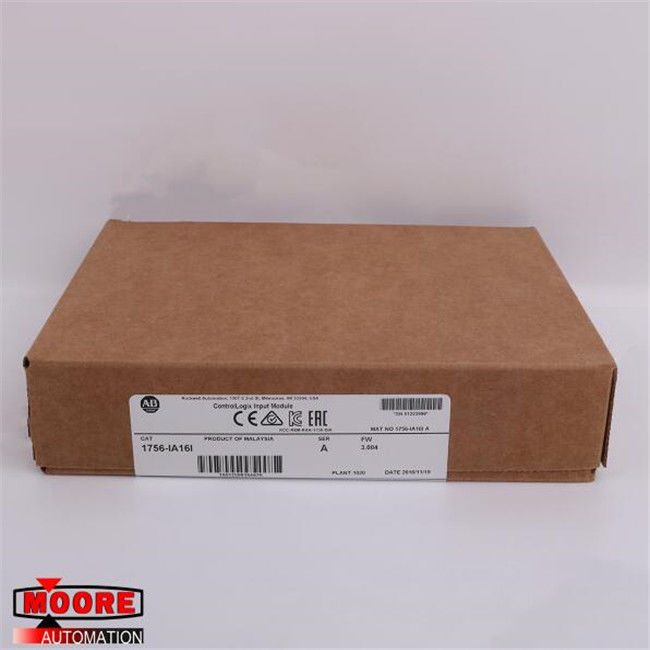

1756-IA16I 1756IA16I AB AB ControlLogix Input Module
⇒ Click here for good price 1756-IA16I
| Brand/Manufacturer | AB/USA |
| Part Number |
1756-IA16I |
| Alternate Part Number | 1756-IA16I |
| Description | MOTOR SERVO |
| Dimennsions |
23.3x18.2x5.3cm |
| Weight | 0.35kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1756-IA16 is a ControlLogix I/O Module. This AC digital input module is an isolated type and has a display that shows the input and communication status and module health. The module’s input channels are individually isolated which are also individually rated at 125 Volts continuous input. This module directly connects to a ControlLogix chassis. The inputs of this module feature a change of state that can be manually configured by the user through the RSLogix 5000 software. Removable terminal block housings compatible with this module are the 1756-TBCH and the 1756-TBS6H.
The input voltage and voltage category of this module are both 120 Volts AC. The current draw at 24 Volts is 3 milliamps and for 5.1 Volts, it is 125 milliamps. The module’s operating voltage ranges from 79 to 132 Volts AC and 47 to 63 Hertz. Maximum power dissipation is 4.9 Watts at 60 Degrees Celsius and the thermal dissipation is 16.71 BTU per hour. Inrush current, at a maximum, is 250 milliamps and the total backplane power is 0.71 Watts. The screw to backplane input delay times are as follows: hardware delay is 10 milliseconds maximum plus user-selectable filter time (1 or 2 milliseconds), and hardware delay has a maximum time of 8 milliseconds and a user-selectable filter time ranging from 9 to 18 milliseconds. The maximum off-stage voltage is 20 Volts and 2.5 milliamps for the maximum current. For the on-state, the minimum is 5 milliamps at 79 Volts AC, ranging from 47 to 63 Hertz, while the maximum is 15 milliamps at 132 Volts AC, ranging as well from 47 to 63 Hertz.
