1326AB-B430E-21 AB Bulletin 1326 series servo motor

1326AB-B430E-21 AB Bulletin 1326 series servo motor

Product Information

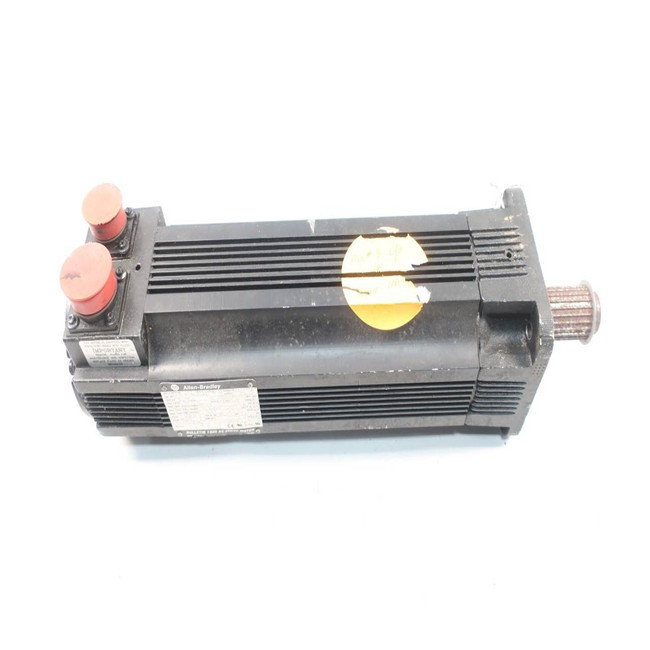

◆ The AB 1326AB-B430E-21 servo motor is a brushless 3-phase AC

servo motor rated at 3000 RPM at 460 Volts AC voltage. It belongs to the AB

1326AB product line which is a series of compact and high-torque motors which feature

a 3-phase sinusoidal-wound stator field, a standard IP 65 environmental protection rating,

aluminum housing, a UL listed insulation system, and an IEC 72-1 metric flange with

metric shafts. Options available for the 1326AB series motors include holding brakes,

shaft seal kits, secondary feedback mounting kits, and junction box kits.

◆ The frame diameter for the 1326AB-B430E-21 servo motor is 108 millimeters and

the bolt center is 155 millimeters. With a 30-millimeter magnet stack length, the

1326AB-B430E-21 servo motor also includes a resolver-based feedback encoder and

an IEC metric flange.

◆ The 1326AB-B430E-21 servo motor can sustain up to 40 degrees Celsius without

derating. The rotor moment of inertia is 0.010 lb-in-s2 and the motor weight is

approximately 37 pounds.

◆ The AB 1326AB-B430E-21 has a 460/380V AC Voltage, a 108 mm Frame

Diameter, and a 3000 rpm Rated Motor Speed. It also contains a 6.6 Nm System

Continuous Torque and a 1.4 kW Motor Rated Output.
