XF522A Honeywell Spare Parts

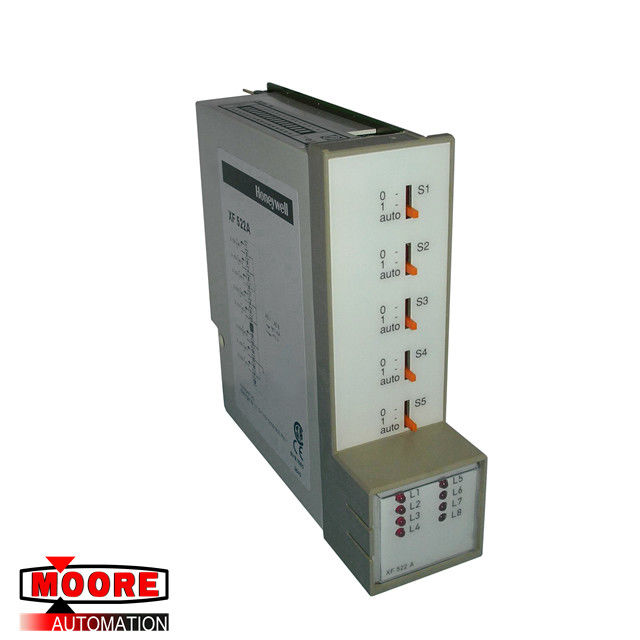

XF522A Honeywell Analog Output Module

⇒ Click here for good price XF522A

Product Details

DESCRIPTION

The Excel 500/600 System is part of the EXCEL 5000 family of controllers. The Excel 500/600 System is freely programmable and can be used as a stand-alone controller or as part of a network of up to 30 controllers connected via a C-bus (9.6 Kbaud up to 76.8 Kbaud). The Excel 500/600 System provides energy management and control functions via internal plug-in I/O modules in the unit housing as well as via a 2-wire LONWORKS bus interface (Excel 500, only) to

Honeywell Distributed I/O modules or Smart I/O modules.

The Excel 500/600 housing has four slots for plug-in modules. The primary unit consists of a CPU module (Excel 500 uses XC5010C, Excel 600 uses XC6010 for special high-performance requirements), a power supply module (XP502), and two additional I/O modules. Up to four more Excel 500/600 housings (without CPU and Power Supply module) can be connected in series providing slots for additional modules. An Excel 500/600 System can consist of up to 16 I/O modules (total number of plug-in and Distributed I/O modules (Excel 500, only)) with up to 128 inputs and outputs. A maximum of ten modules of the same type are allowed per system.

There are two sources for Excel 500/600 program applications:

1. The controller is shipped with a wide range of standard functions permanently stored in EPROM. By selecting applications from these applications, the user program is assembled. No further programming is necessary.

2. Using Honeywell's Windows-based CARE programming tool, standard HVAC technology applications can be freely programmed, as needed.

3. The user program is then automatically generated based on the graphically designed schematic diagram, instrumentation, and control strategies.

FEATURES

Various state-of-the-art communication options: Open LONWORKS® bus (Excel 500, only) or C-bus (Excel 500/600) communication; modem or ISDN terminal adapter at up to 38.4 Kbaud (Excel 500, only); dial-up through TCP/IP networks.

Maximum of 5 housings per Excel 500/600 control system with up to 16 I/O modules.

128 physical data points and 256 pseudo points per Excel 500/600 controller (C-bus communication).

Use with both internal, plug-in I/O modules, and Distributed I/O modules via LONWORKS bus (Excel 500, only).

Unique features in open LONWORKS networks: NVBooster reduces the number of required NVs and thus also the number of required controllers; NV bindings can be restored after controller reset (and thus need not be redone after exchanging controllers); 512NVs supported for LONWORKS integration; autobinding with Honeywell Distributed I/O modules, Smart I/O modules and 3rd party LonWorks devices makes NV binding unnecessary, thus saving considerable engineering time.

Easy-to-use controls and six-line LCD display.

Front door or control panel mounting with DIN-rail.

Wireless communication via GSM (Excel 500, only).

Applications programmable with Honeywell's CARE programming tool and downloadable into Flash EPROM (Excel 500, only).

Enhanced controller functions including: alarm, trend and global broadcast hysteresis, network-wide time synchronization, firmware downloading via modem and C-Bus.
