ATV12H018M2X Schneider Electric Parts

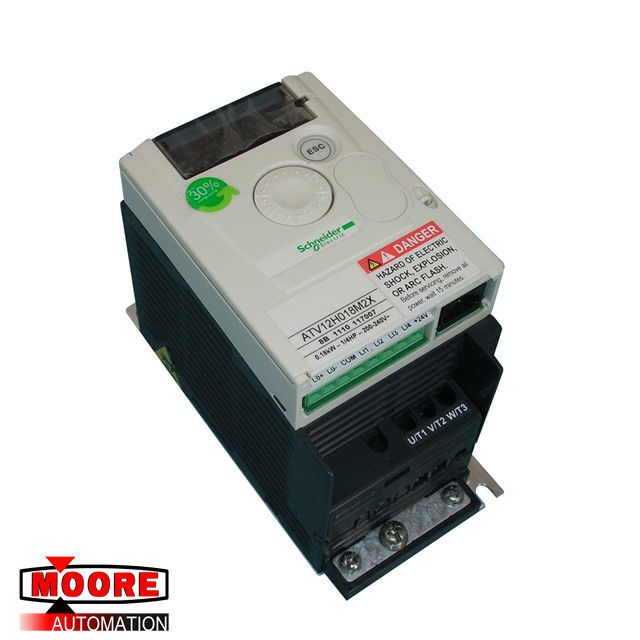

Schneider ATV12H018M2X Variable speed drive

⇒ Click here for good price ATV12H018M2X

Product Details

Technical Data

supply frequency: 50/60 Hz +/- 5 %

connector type: 1 RJ45 (on front face) for Modbus

physical interface: 2-wire RS 485 for Modbus

transmission frame: RTU for Modbus

transmission rate: 4800 bit/s; 9600 bit/s; 19200 bit/s; 38400 bit/s

number of addresses: 1…247 for Modbus

communication service:

Read holding registers (03) 29 words;

Write single register (06) 29 words;

Write multiple registers (16) 27 words;

Read/write multiple registers (23) 4/4 words;

Read device identification (43).

prospective line Isc: 1 kA

continuous output current: 1.4 A at 4 kHz

maximum transient current: 2.1 A for 60 s

speed drive output frequency: 0.5…400 Hz

nominal switching frequency: 4 kHz

switching frequency: 2...16 kHz adjustable; 4...16 kHz with derating factor

braking torque: Up to 70 % of nominal motor torque without braking resistor

motor slip compensation: Preset in factory; Adjustable

output voltage : 200...240 V 3 phases

electrical connection: Terminal, clamping capacity: 3.5 mm², AWG 12 (L1, L2, L3, U, V, W, PA, PC)

tightening torque: 0.8 N.m

insulation : Electrical between power and control

Supply: Internal supply for reference potentiometer: 5 V DC (4.75…5.25 V), <10 mA, protection type: overload and short-circuit protection. Internal supply for logic inputs: 24 V DC (20.4…28.8 V), <100 mA, protection type: overload and short-circuit protection.
