Product Details

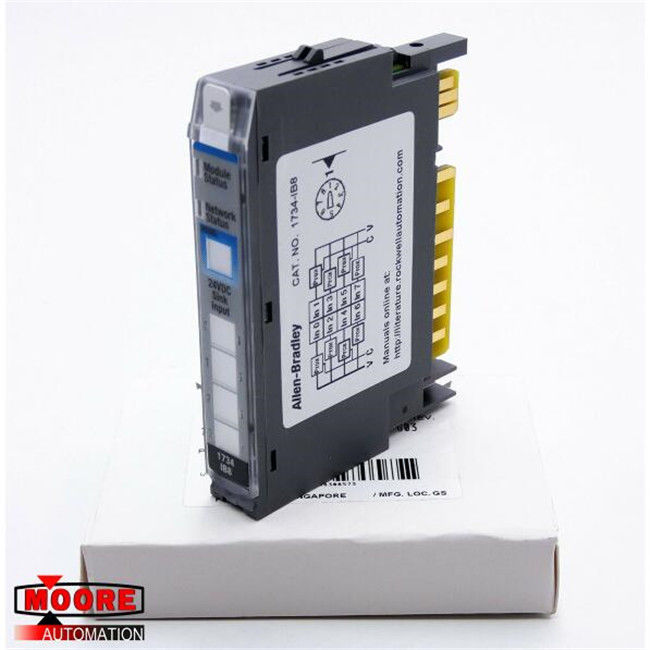

The 1734-IB8 is a point I/O input module that has been manufactured and designed by AB. It has been included in Series C of the AB point I/O input module and it can be used especially with the DeviceNet and Profibus communication adapters. The AB 1734-IB8 point I/O input module works with the RSLogix 5000 software that has been upgraded to version 11 or higher and it can be used with the ControlNet and Ethernet adapters. The AB 1734-IB8 point I/O input module comes with a locking mechanism and a side-in writable label. It also has removable terminal blocks, an undertaken I/O module, and a mounting base. The AB 1734-IB8 point I/O input module can be installed on a mounting base that is installed on a DIN rail. This specific model has 8 inputs and it comes with 4 status indicators. It has a module status indicator, a network status indicator, and a 24 Volts DC sink input. The 1734-IB8 has 0.8 N-m or 7 pounds on an inch of terminal base screw torque and a maximum POINT Bus current of 75 mA at 5 Volts DC.

The isolation voltage for this module is 50 Volts DC. This voltage has been tested at a maximum voltage of 2500 Volts DC for 60 seconds. The AB 1734-IB8 point I/O input module has an approximate weight of 32.3 grams and a height of 56 millimeters, a width of 12 millimeters, and a length of 75.5 millimeters. The maximum surrounding air temperature for the AB 1734-IB8 point I/O input module is 55 degrees Celsius and it can operate within a temperature range of -21 to 55 degrees Celsius. Like any electronic device, it is recommended to have it installed in a clean and dry location without the presence of any substances that might cause corrosion in the most important parts of the drive. In order to protect and preserve the life of the drive, it must be installed by an expert who knows the exact functioning of all the involved parts and equipment. The 1734-IB8 has an open-style enclosure type rating and it can be mounted horizontally or vertically.
