| Brand/Manufacturer |
ICS TRIPLEX/USA |
| Part Number |
T9451 |
| Alternate Part Number |
T9451 |
| Description |
Digital Output Module |
| Dimennsions |
3.5*19.8*17.1cm |
| Weight |
0.56kg |
Product Details

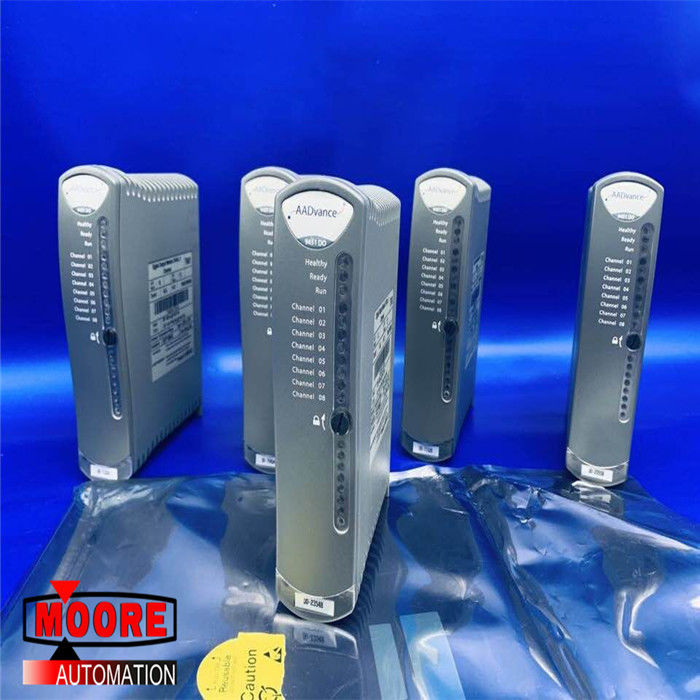

The T9451 digital output module interfaces up to eight final elements and can switch 1A at
32V dc for each device. It features voltage and load current monitoring on each channel,
reverse current protection and short and open circuit line monitoring. It is designed to always
be able to switch off an output when demanded. No single failure within the module can cause
a stuck-on failure.The module supports dual redundant power feeds for field devices without
the need for external diodes.
The output module isolates the processor module from the output channel control and data
management circuits, thus protecting the processor module from potential faults in the output
control circuits and field connections.
The output channel protection activates when the channel load exceeds a safe limit. The
reverse voltage protection circuit in each output channel ensures that externally applied voltages
do not generate current flow into the module outputs.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
