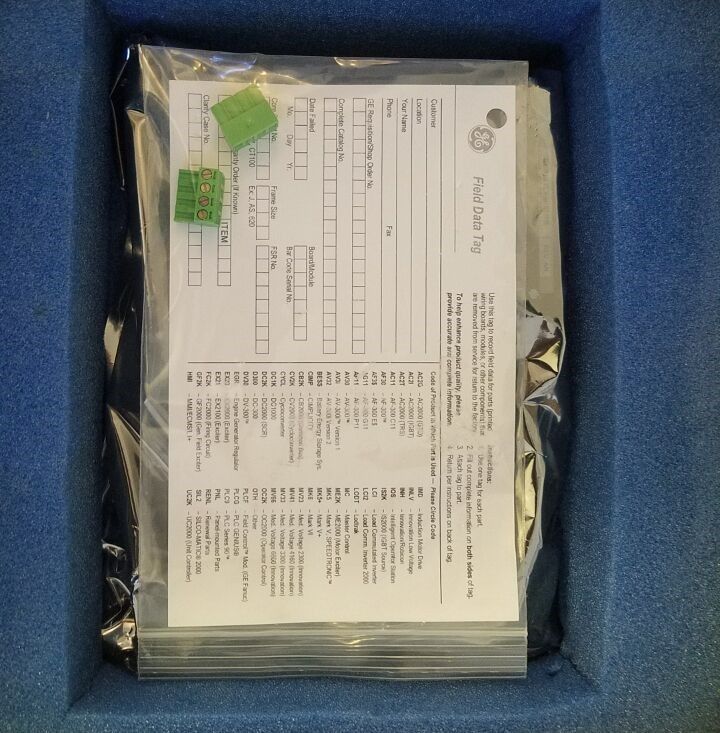

IC694MDL753 | GE | Output module, 12/24VDC POS logic, 32 points GE IC694MDL753

GE IC694MDL753


Contact: Miya
Job Title: Sales Manager
Skype: miyazheng520
Email: miya@mvme.cn
Tel: 86-18020776792(Whats App )
QQ :2851195450







PRODUCT NAME: IC694MDL753


Output module, 12/24VDC POS logic, 32 points. Interface uses Fujitsu connector
The 12/24 volt DC, 0.5A Positive Logic Output module, IC694MDL753, provides 32 discrete outputs in four isolated groups of eight. Each group has its own common. The outputs are positive logic or sourcing type outputs; they switch the loads on the positive side of the power supply, and supply current to the load. The outputs can switch user loads over the range of +12 to +24 VDC (+20%, - 15%) and can source a maximum current of 0.5 Amps per point. There are two pins on the I/O connectors for each group common. Each pin has a current handling capacity of 3 Amps. It is recommended that connections be made to both pins when connecting the common; however, it is required for high-current applications (between 3 and 4 Amps).
Each group can be used to drive different loads. For example, three groups might drive 24 VDC loads, while the fourth was reserved for driving 12 VDC loads. Power to provide current to the loads must be provided by the user. The module also draws a minimum amount of power from the user supply to provide gate drive to the output devices. Backplane isolation between the field side and logic side is provided by opto–couplers on the module.
All 32 outputs are forced OFF when the CPU is stopped. There are no special fault or alarm diagnostics reported. Individual numbered LEDs show the ON/OFF status of each output.
This module can be installed in any I/O slot in an RX3i system.
