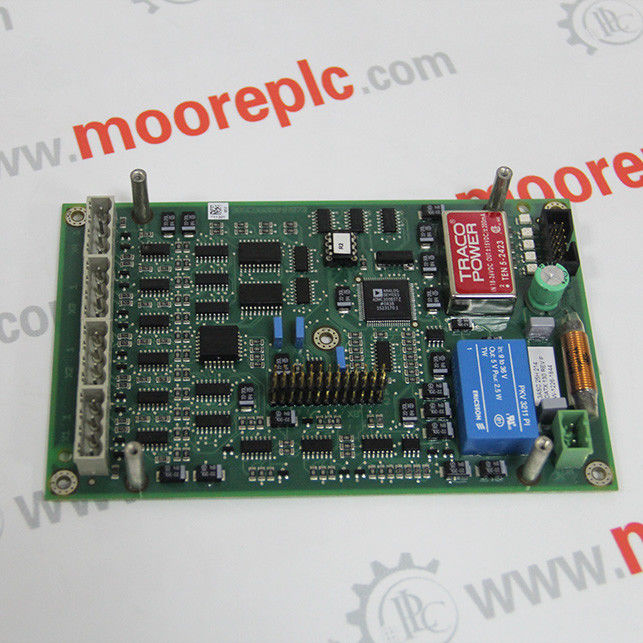

SDCS-PIN-41A 3BSE004939R1

Compatibility of SDCS-PIN-20x boards

The SDCS-PIN-20xB boards replaces SDCS-PIN-20xA and SDCS- PIN-20x boards, but not vice versa. Note: SDCS-PIN-20xA replaces SDCS-PIN-20x, but not vice versa.

Compatibility of SDCS-PIN-20x and SDCS-PIN-2x boards

Converters 100A ≤ IDC ≤ 350A and UAC: 400V/500V - SDCS-PIN-21 or - SDCS-PIN-205B/205A/205 can be used as spare parts. Converters 405A ≤ IDC ≤ 520A and UAC: 400V/500V - SDCS-PIN-22 together with SDCS-PIR-21 or - SDCS-PIN-205B/205A/205 can be used as spare parts. Converters IDC = 700A and UAC: 400V/500V (type C2) - SDCS-PIN-25 together with RC network (possible only in converters with an A in their serial number) or - SDCS-PIN-205B/205A/205 can be used as spare parts (pos- sible in converters with an A or B in their serial number). In an A converter do not connect the RC network. Note: In a B converter only SDCS-PIN205B/205A/205 boards are usable, because the RC network is missing. Converters 610A ≤ IDC ≤ 1000A and UAC: 400V/500V (type C2b) only - SDCS-PIN-205B can be used as spare part. Converters 100A ≤ IDC ≤ 270A and UAC: 600V - SDCS-PIN-23 - SDCS-PIN-206B/206A/206 can be used as spare parts. Converters IDC = 405A/450A and UAC: 600V - SDCS-PIN-24 together with SDCS-PIR-21 or - SDCS-PIN-206B/206A/206 can be used as spare parts. Note: In addition to above mentioned limitations make sure that the resistors are cut properly according to the table ‘Settings of the SDCS-PIN-20xB board’ as described in the manual Techni- cal Data. Especially when a board is reused!

Change SDCS-PIN-2x boards

The converter is equipped with a SDCD-PIN-21/22/23/24 board: - Make sure, electrical and mechanical safety is obtained! - Mark the cables connected to U1, V1, W1 and C1, D1. Mark the plugs connected to X22, X3 and X4. - Disconnect all cables and plugs. - Remove the SDCS-PIN-2x board. Note: If the converter is equipped with a SDCS-PIR-21 there is no need to remove this board separately, because it is mounted on the SDCS-PIN-2x board. - Make sure that the resistors on the new board are cut properly according to the table ‘Settings of the SDCS-PIN-20xB board’ as described in the manual Technical Data. - Install the new SDCS-PIN-20xB board. Note: SDCS-PIN-205B replaces SDCS-PIN21/23 and SDCS- PIN-206B replaces SDCS-PIN-22/24. - Reconnect all cables and plugs. The converter is equipped with a SDCD-PIN-25 board: - Make sure, electrical and mechanical safety is obtained! - Mark the cables connected to U1, V1, W1 and C1, D1. Mark the plugs connected to X22, X3 and X4. - Disconnect all cables and plugs. - Remove the SDCS-PIN-25 board. Note: The additional RC network is not needed anymore. Due to safety reasons remove the cables marked U1 – C14, V1 – C16, W1 – C12, C1 – R15 and D1 – R12. - Make sure that the resistors on the new board are cut properly according to the table ‘Settings of the SDCS-PIN-205B board’ as described in the manual Technical Data. - Install the new SDCS-PIN-205B board. Note: SDCS-PIN-205B replaces SDCS-PIN25. - Reconnect all cables and plugs.
