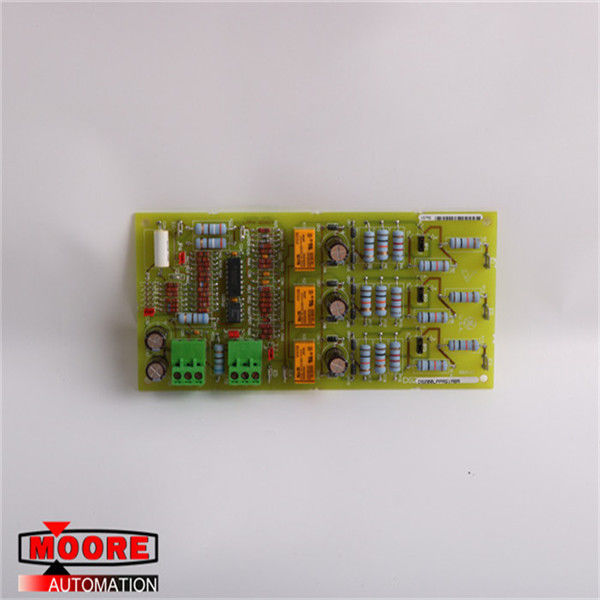

GE DS200LPPAG1A Line Protection Board

Product Specification

Product Details

Features 7 jumpers and 2 terminal blocks with 3 terminals on each. The

jumpers are identified as JP1 through JP7. The GE Line Protection Board

DS200LPPAG1A also contains test points. The board is installed on

standoffs on another component of the drive. The signal wires that connect

to the board originate on the other component.

Disconnect any cables that are connected to the board, including the signal

wires connected to the terminals. Note where the signal wires are connected

on the terminal blocks. This will make the installation of the replacement board

faster and reduces the opportunity for mistakes in connecting the terminals.

It is best practice to remove the component the board is attached to together

as one piece from the drive. Refer to the information that describes the

installation of the other component to understand the steps to removing it.

Then remove it from the drive and place it on an EDS protective surface, for

example a flattened out static bag.
