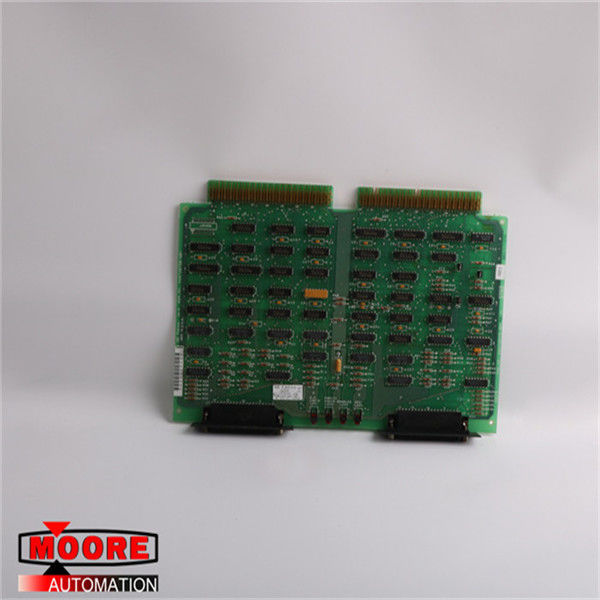

IC600CB527L GE Control Module

Product Specification

Product Details

Input protection for the module is sufficient to guarantee operation with

reduced performance with up to 200V common-mode. The module

provides electrical isolation of externally generated noise between field

wiring and the backplane through the use of optical isolation. To minimize

the capacitive loading and noise, all field connections to the module should

be wired using a good grade of twisted, shielded instrumentation cable.

The shields can be connected to either COM or GND. The COM connection

provides access to the common of the analog circuitry in the module. The

GND connection provides access to the baseplate (frame ground). An LED

at the top of the faceplate is ON when the module’s power supply is operating.

The main power source for the module is the isolated +24 VDC power

supplied by the PLC power supply.

This voltage is routed through an inverter/regulator to provide the operating

voltage for the module. This module also consumes power from the +5 VDC

output of the PLC power supply to drive the isolation circuitry. This module

can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30

PLC system. See page 3-11 to determine the number of Analog Current

Input modules that can be installed in a system.
