| Brand/Manufacturer |
YASKAWA/JAPAN |
| Part Number |

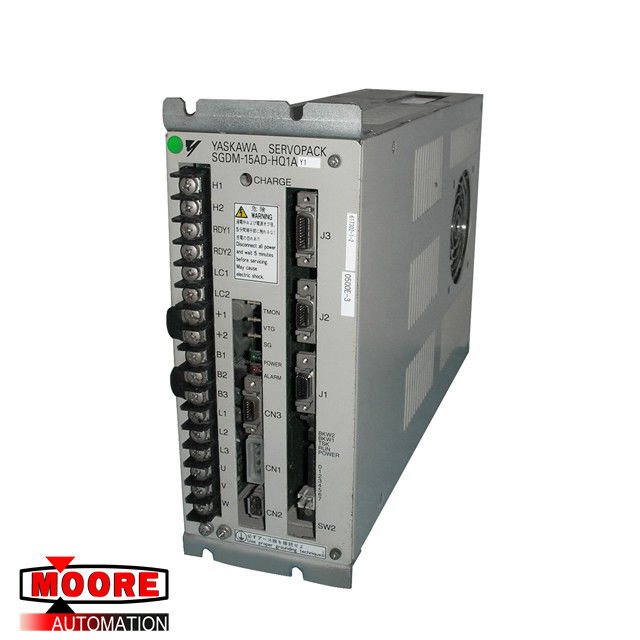

SGDM-15AD-HQ1AY1
|
| Alternate Part Number |
SGDM-15AD-HQ1AY1
|
| Description |
SERVOPACK |
| Dimennsions |
12.3 cm x 26.2cm x 24.5cm |
| Weight |
0.79kg |
Product Details
When the drive reaches the set frequency reference, the output frequency waveform is modulated in a
triangle type pattern. This randomizes fiber overlap on the spindle, producing a tighter wrap and a higher
quality wound package. P1 parameters are used to set the attributes of a disturbed waveform, which is
essentially a triangle wave with instantaneous jumps at the peak and trough. This triangle wave rides on
top of the base frequency reference for the traverse drive.
The signal(s) output to control the slave spindle drive can be set to one of three new monitors:
U7-02 - Absolute Slave Frequency
U7-03 - Ripple Slave Frequency
U7-04 - Slave Base Frequency
The Absolute and Ripple Slave Frequency monitors have an anti-phase component to them, outputting a
disturbed waveform that is the inverse (anti-phase) of the master disturbed waveform. The anti-phase
waveform ignores the jump portion of the master traverse disturbed waveform.
