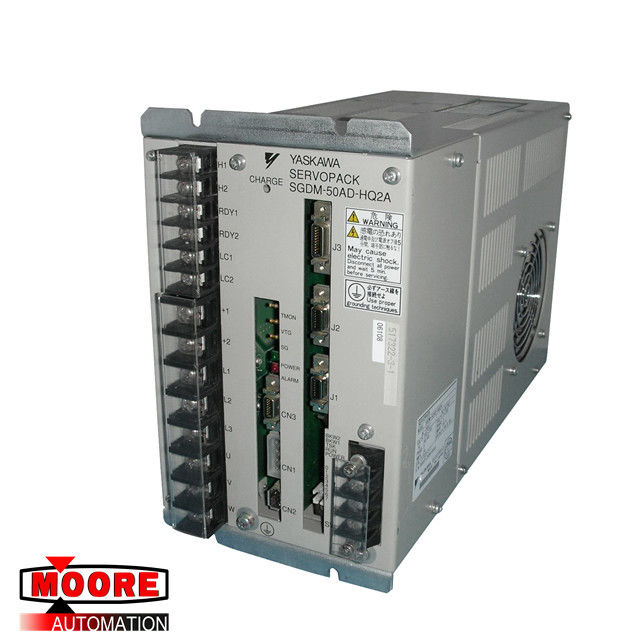

| Brand/Manufacturer |
YASKAWA/JAPAN |
| Part Number |
SGDM-50AD-HQ2A
|
| Alternate Part Number |
SGDM-50AD-HQ2A
|
| Description |
SERVOPACK |
| Dimennsions |
13.3 cm x 26.5cm x 22.9cm |
| Weight |
0.71kg |
Product Details
The disturbed waveform begins once the drive reaches Speed Agree. The disturbed waveform rides on
top of the base frequency reference for the traverse drive. The output will be the frequency reference
waveform summed with the disturbed waveform if the frequency reference of the master drive is adjusted
while the disturbed waveform is active.The dithering is a triangle waveform with amplitude and slope set by
P1-02, P1-04, and P1-05 parameters. The traverse drive also has a jump in the dithering wave form which
is set by parameter P1-03.The anti-phase output signal is the disturbed portion of the traverse frequency
reference signal inverted. Only the triangle portion of the disturbed waveform is used for the anti-phase.
The jump is ignored.
