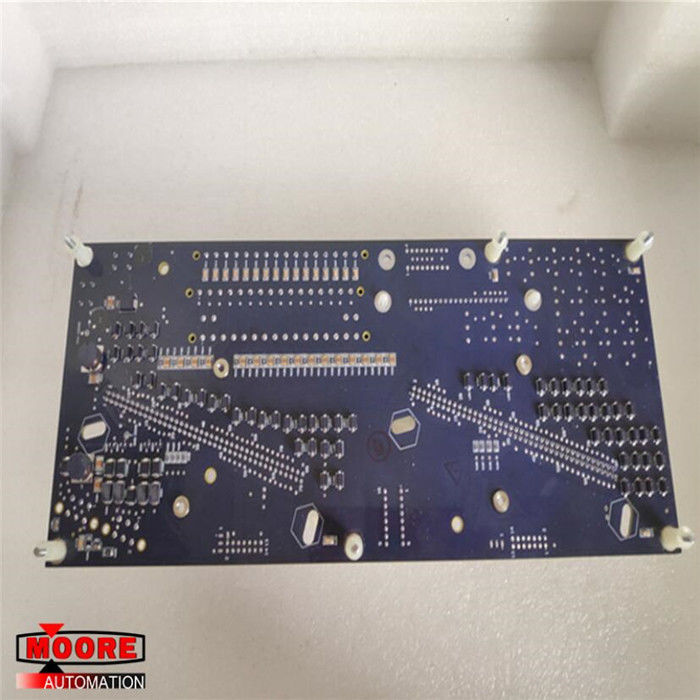

Product Specificaion
| Brand/Manufacturer |
Honeywell /USA |
| Part Number |
8C-TAIDB1
|
| Alternate Part Number |
51307133-175 |
| Description |
Module backplane |
| Dimennsions |
22.2 cm x 14.2cm x 4.1cm |
| Weight |
0.42kg |
Product Details
This document provides technical information to configure the Series 8 I/O. The following Series 8 I/O items are included in this document:
TC/RTD
Analog Input–Single Ended
Analog Input with HART–Single Ended
Analog Input with HART–Differential
Analog Output
Analog Output with HART
Digital Input Sequence of Events (SOE)
Digital Input, 24 VDC
Digital Input Pulse Accumulation
Digital Output, 24 VDC
DO Relay Extension Board
Definitions:
Input Output Termination Assembly (IOTA): An assembly that holds the IOM and the connections for field wiring;
Input Output Module (IOM): A device that contains most of the electronics required to perform a specific I/O function. The IOM plugs
onto the IOTA.
