| Place of Origin | SWEDEN |
| Brand Name | ABB |
| Certification | CO.CQ |
| Model Number | RINT-5611C |
| Brand/Manufacturer | ABB/SWEDEN |
| Part Number |
RINT-5611C |
| Alternate Part Number | RINT-5611C |

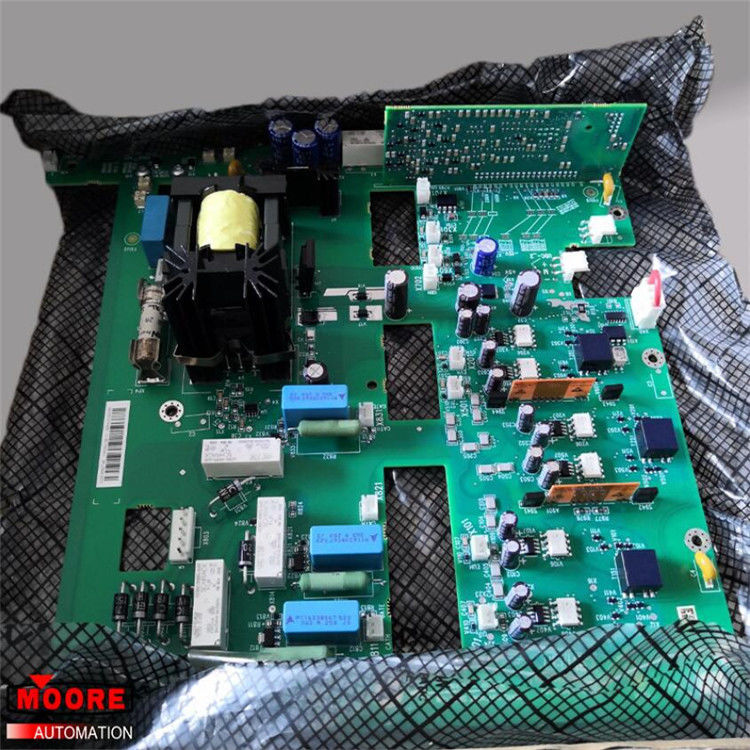

| Description | Inverter ACS800 Series Driver Board |
| Dimennsions | 19.3 cm x 18.9cm x 5.1cm |
| Weight | 0.35kg |
Product Details
Mounting: Onto 35 × 7.5 mm DIN mounting rail
Housing materials: Zinc-plated steel (base); ABS/PC (cover)
X20 (Constant voltage output): 2-pole detachable screw terminal block
X21 (Analogue I/O): Four 3-pole detachable screw-type terminal blocks
X22 (Digital inputs): One 3-pole and two 4-pole detachable screw-type terminal blocks
X23 (24 VDC output): 2-pole detachable screw-type terminal block
X25-X27 (Relay outputs): Three 3-pole detachable screw-type terminal blocks
X31 (Slot 1), X32 (Slot 2): 38-pin header (female), pitch 2 mm
X33 (DDCS): 20-pin header (female), pitch 2.54 mm
X34 (24 VDC power input): 3-pole detachable screw-type terminal block
X39 (Control panel): 12-pin header (male), pitch 2.54 mm
V57, V68 (PPCS link): Fibre optic transmitter/receiver (10 MBd)
Wire: 0.3 … 3.3 mm2 (22…12 AWG). Torque: 0.2 … 0.4 Nm (2…4 lbf.in.).Pitch: 5.0 mm.
