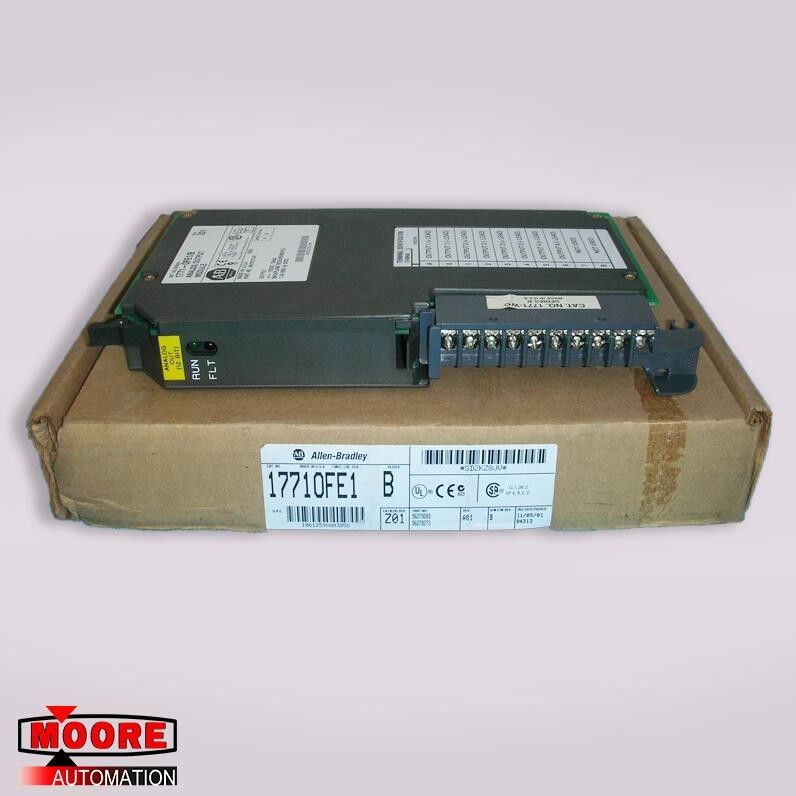

1771-0FE1/B 1771-WC Allen Bradley Analog Output Module 10VDC 10mA
  • 1771-0FE1/B 1771-WC Allen Bradley Analog Output Module 10VDC 10mA

1771-0FE1/B 1771-WC Allen Bradley Analog Output Module 10VDC 10mA

Place of Origin USA
Brand Name Allen Bradley
Certification CO.CQ
Model Number 1771-0FE1/B 1771-WC
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
1771-0FE1/B 1771-WC
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
Allen Bradley
Weight:
4lbs
High Light:

allen bradley plc 5

,

controlnet bridge module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



1771-0FE1/B 1771-WC Allen Bradley analog output module



Product Specificaion

Brand/Manufacturer Allen Bradley/USA
Part Number

1771-0FE1/B

Alternate Part Number 1771-WC
Description analog output module
Dimennsions  WHD 5.1 cm x 15.2 cm x 25.4 cm
Weight 0.5kg



Product Details

The Analog Output Module (cat. no. 1771-OFE) is an intelligent block transfer module that converts binary or four-digit BCD values (supplied by your processor) to analog signals at its four module outputs. The module accomplishes the data transfer with block transfer programming.



Block transfer write (BTW) programming moves up to 13 words of data from the processor to the module for digital to analog (D/A) conversion in one program scan. This information is converted to analog signals and is sent to the appropriate output channels. A block transfer read (BTR) moves five words of data from the module to the processor data table, if desired, for diagnostic purposes. The BTR is discussed in Chapter 7, “Diagnostics and Troubleshooting.”



The module has a scaling feature that converts data sent to the module in engineering units to the proper analog signals. You may connect up to four analog output devices--such as valve positioners, motor speed controllers, signal converters or recorders--to the analog output module’s four channels. All analog output device inputs should conform to the voltage or current ratings of each module output channel.



In the programmable controller system, the analog output module

provides the following functions:

four individually isolated differential outputs

selectable scaling to engineering units

selectable data format

selectable voltage ranges (1771-OFE1 only)

no external power required--power is drawn from the 1771 I/Ochassis backplane.

requires only one I/O slot

1771-0FE1/B 1771-WC Allen Bradley Analog Output Module 10VDC 10mA 01771-0FE1/B 1771-WC Allen Bradley Analog Output Module 10VDC 10mA 1
