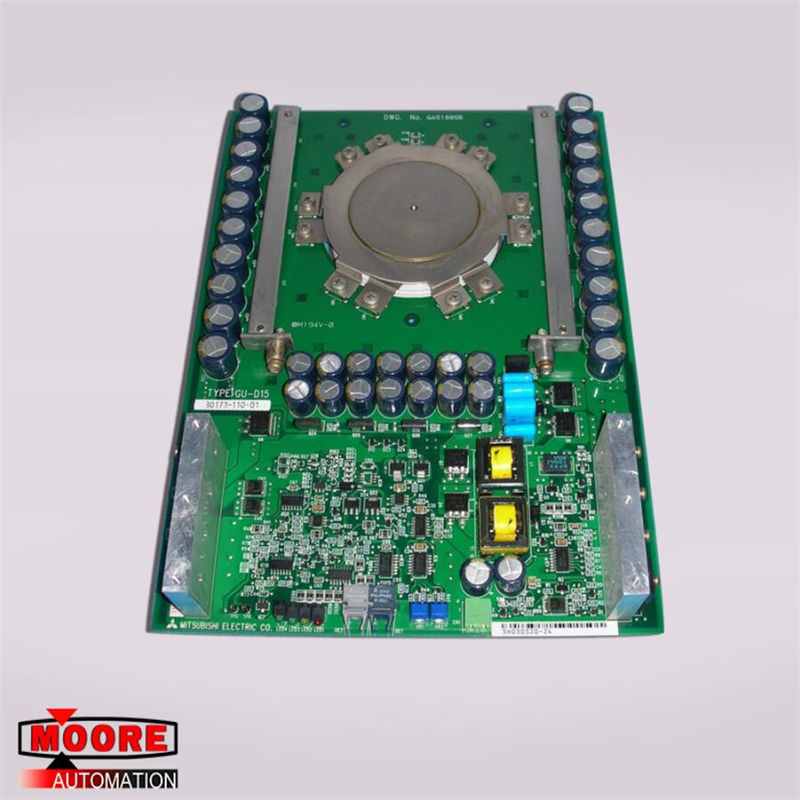

GU-D15/30173-110-01 MITSUBISHI Thyristor Board
| Brand/Manufacturer |
MITSUBISHI /JAPAN |
| Part Number |
GU-D15/30173-110-01
|
| Alternate Part Number |
GU-D15/30173-110-01 |
| Description |
Thyristor Board |
| Dimennsions |
20.5 cm x 14.6cm x 4.5cm |
| Weight |
0.5kg |
Product Details
To an external connection port other than AC power supply terminal and AC input/ output terminal, connect the circuit separated from a dangerous voltage by a double/reinforced insulation.
Between the commons having the adjacent relay output terminals, if an external power supply is higher than 120 V AC, the insulation is basic. Therefore, when using 120 V AC or higher external power supply and 30 V DC/AC or lower external power supply between the adjacent commons, do not handle 30 V DC/AC or lower external power supply as a touchable part, (When handling 30 V DC/AC or lower external power supply as a touchable part, add a basic insulation.)
Do not wire two or more crimp terminals to one terminal. (If the wiring with two or more wires is needed, take an appropriate action such as adding an external terminal.)
For crimp terminals to be used for the wiring applied with 30 V AC or higher, use the products with insulating sleeves.
Cutoff device such as a breaker or a circuit protector should be installed in accordance with the following precautions.
- Use EN60947-1 or EN60947-3 standards.
- Place the cutoff device so that it can be operated easily.
- Specify that the cutoff device is for this equipment.
1 For the time of compliance with the LVD directive (EN61010-2-201:2013), refer to the manual of the PLC to be connected.
