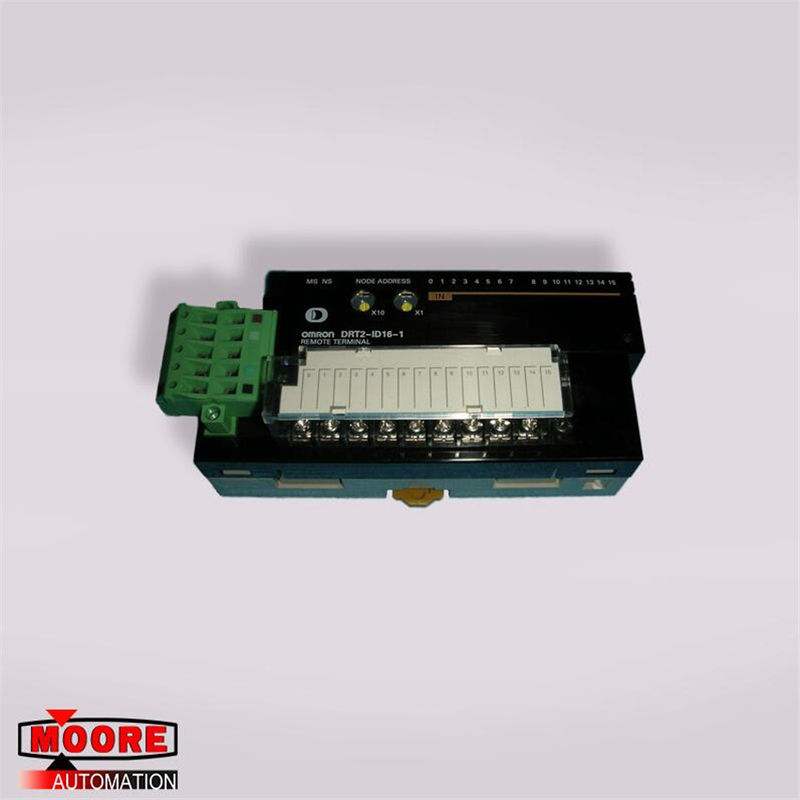

DRT2-ID16-1 OMRON REMOTE TERMINAL INPUT
| Brand/Manufacturer |
OMRON /JAPAN |
| Part Number |
DRT2-ID16-1
|
| Alternate Part Number |
DRT2-ID16-1 |
| Description |
REMOTE TERMINAL INPUT |
| Dimennsions |
(5.1 cm x 5.1 cm x 12.7 cm) |
| Weight |
0.1kg |
Product Details
Wide variety of data, such as maintenance system data, can be collected without affecting the productivity of the control system. Valuable information can be collected and managed through the network, including information on the communications power supply voltage levels, Unit wear and tear, and equipment operating information. Expansion via Expansion I/O Units. With no communications baud rate settings required and detachable terminal blocks, maintenance is easier.
Communications power supply voltage 11 to 25 VDC
Unit power supply voltage Not required (Supplied from the communications connector.)
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Current consumption (Communications)
DRT2-ID08(-1)/MD16: 55 mA max.
DRT2-OD08/MD16-1: 50 mA max.
DRT2-OD08-1: 45 mA max.
DRT2-ID16(-1)/OD16(-1): 60 mA max.
Dielectric strength 500 VAC (between isolated circuits)
Noise immunity Conforms to IEC61000-4-4, 2 kV (power line)
Vibration resistance 10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s2 for
80 min each in the X, Y, and Z directions
Shock resistance 150m/s2, 6 directions, 3 times each
Mounting method DIN 35 mm-track mounting
Screw tightening torque M3 (power, I/O terminal): 0.5 N·m
Ambient operating temperature –10°C to 55°C
Ambient operating humidity 25 to 85% (with no condensation)
Ambient storage temperature -25°C to 65°C
