| Place of Origin | GERMANY |
| Brand Name | VIPA |
| Certification | CO.CQ |
| Model Number | 610-3B4I1-CMA |

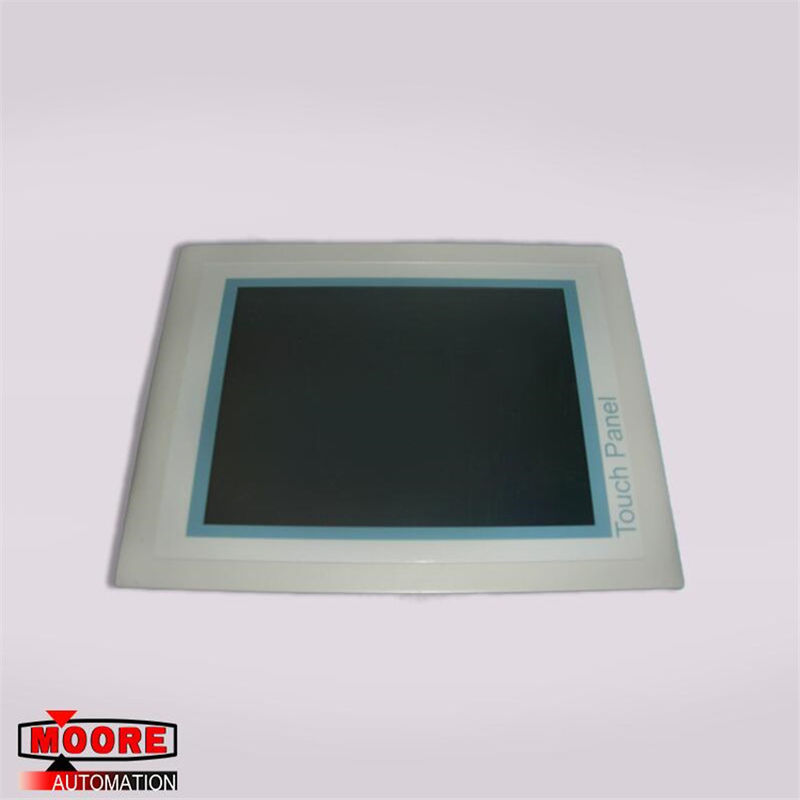

VIPA 610-3B4I1-CMA Touch Panel
| Brand/Manufacturer | VIPA /GERMANY |
| Part Number |
610-3B4I1-CMA |
| Alternate Part Number | 610-3B4I1-CMA |
| Description | Touch Panel |
| Dimennsions | 30.4cm x 23.3cm x 7.0 cm |
| Weight | 0.34kg |
Product Details
The VIPA Touch Panel is a compact and modular embedded PC based on Windows CE. Besides of the extensive Windows; CE functions the Touch Panel offers varied communication possibilities. Here the Touch Panel can simply be configured, controlled and remoted. By including a selectable
HMI/SCADA runtime the Touch Panel is particularly suitable for monitoring and controlling of process cycles.
Windows CE 5.0 Professional Plus or Windows Embedded CE 6.0
Different HMI/SCADA-Runtime selectable
800MHz pulse frequency
Work memory 128Mbyte about 1800Mbyte memory for user data on Board
CF-Card II and MMC/SD card slot
Horizontal and vertical display selectable in 90° steps
RS232, RS485, RS422, MPI, PROFIBUS DP slave, Ethernet, USB-A and USB-B interfaces on board
Robust aluminium die casting case
Display resolution 800 x 600 / 600 x 800 (64k colors)
Battery backed clock
Resistive touch screen
Easy mounting via integrated pivoted lever
Protection class IP65 (frontal)
Memory:
128Mbyte work memory
2Gbyte Micro-SD card (ca. 1800Mbyte for user data)
USB storage media using "Host"-USB-A interface
Slot for CF (Type II)
Slot for MMC/SD
About VIPA
VIPA GmbH was a start-up before the word was ever invented. Founded in 1985 by Wolfgang Seel, driven by his enthusiasm for automation and the necessary vision for the possibilities of this industry. All this at a time when the Commodore 64 was considered to be the top performer. It's true that the first company address wasn't a garage, but nevertheless a three-room apartment. For the business plan however that's all the room that was needed: Thinking laterally, offering alternatives but remaining compatible.
The first products were supplements and optimizations for existing Siemens systems, then in the 90’s the first PLC-System of their own was added, after that innovation after innovation followed.
Today, with its range of products, among others offering one of the fastest Hard-PLCs, VIPA is now completely established as a automation solution provider and not only as a strong contender as alternative for the S7 Family from Siemens. Being open to many fieldbus systems VIPA is flexible worldwide.
