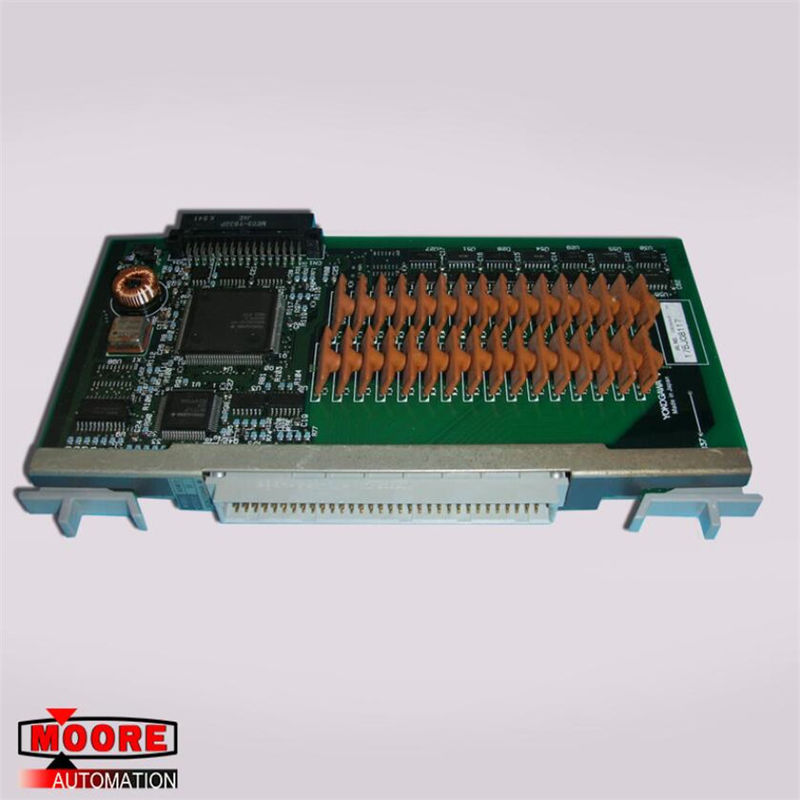

ADM12 S1 YOKOGAWA Contact Output I/O Card
| Brand/Manufacturer |
YOKOGAWA /JAPAN |
| Part Number |
ADM12 S1
|
| Alternate Part Number |
ADM12 S1
|
| Description |
Contact Output I/O Card |
| Dimennsions |
22.1cm x 15.4cm x 5.1 cm |
| Weight |
0.23kg |
Product Details
Output:
For 4 to 20 mA HART / BRAIN (Output signal code D and J):
Two wire 4 to 20 mA DC output with digital communications, linear or square root programmable. BRAIN or HART FSK protocol are superimposed on the 4 to 20 mA signal.
Output range: 3.6 mA to 21.6 mA
Output limits conforming to NAMUR NE43 can be pre-set by option code C2 or C3.
For 1 to 5 V HART (Output signal code Q):
Three or four wire low power 1 to 5 V DC output with HART, linear or square root programmable.
HART protocol are superimposed on the 1 to 5 V DC signal. Output range: 0.9 V to 5.4 V DC
Failure Alarm (Output signal code D and J) For 4 to 20 mA HART / BRAIN (Output signal code D and J):
Output status at CPU failure and hardware error;
Up-scale: 110%, 21.6 mA DC or more (standard)
Down-scale: −5%, 3.2 mA DC or less
For 1 to 5 V HART (Output signal code Q):
Analog output status at CPU failure and hardware error;
Up-scale: 110%, 5.4 V DC or more (standard)
Down-scale: −5%, 0.8 V DC or less
