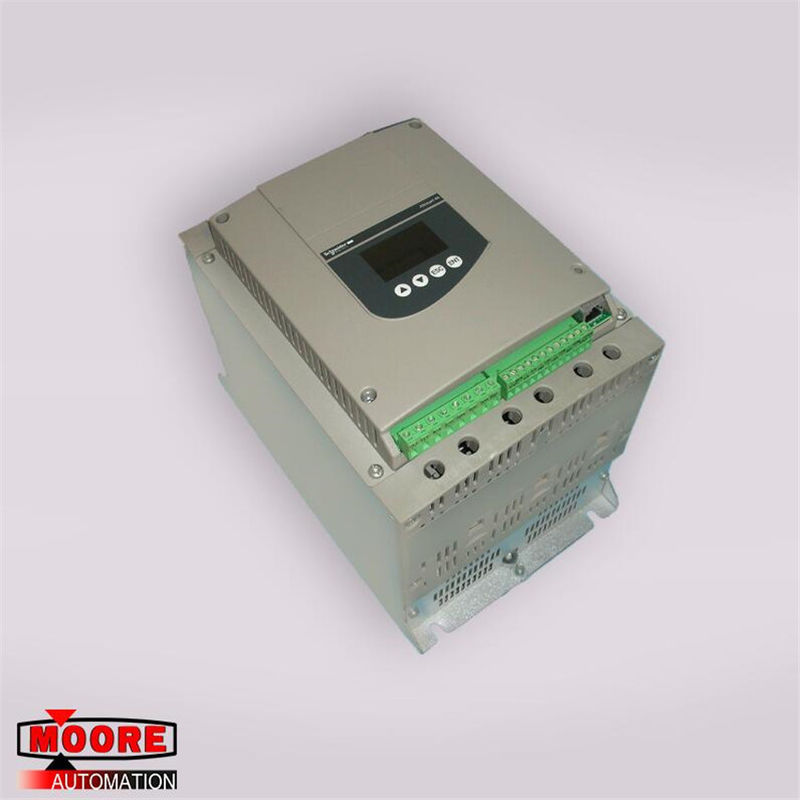

ATS48D62Q Schneider Soft Starter For Asynchronous Motor
  • ATS48D62Q Schneider Soft Starter For Asynchronous Motor

ATS48D62Q Schneider Soft Starter For Asynchronous Motor

Place of Origin FRANCE
Brand Name SCHNEIDER
Certification CO.CQ
Model Number ATS48D62Q
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
ATS48D62Q
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
SCHNEIDER
Weight:
4lbs
High Light:

schneider electric spare parts

,

quantum processor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description





ATS48D62Q Schneider Soft starter for asynchronous motor



Brand/Manufacturer Schneider/FRANCE
Part Number

ATS48D62Q

Alternate Part Number

ATS48D62Q

Description Soft starter for asynchronous motor
Dimennsions 20.1cm x 21.2cm x 28.7cm
Weight 0.74kg



Product Details

Range of product Altistart 48

Product or component type Soft starter

Product destination Asynchronous motors

Product specific application Heavy duty industry and pumps

Device short name ATS48

Power supply voltage 230...415 V - 15...10 %



Motor power kW:

55 kW at 400 V connection to the motor delta terminals for standard applications

11 kW at 230 V connection in the motor supply line for severe applications

15 kW at 230 V connection in the motor supply line for standard applications

22 kW at 230 V connection to the motor delta terminals for severe applications

22 kW at 400 V connection in the motor supply line for severe applications

30 kW at 230 V connection to the motor delta terminals for standard applications

30 kW at 400 V connection in the motor supply line for standard applications

45 kW at 400 V connection to the motor delta terminals for severe applications



Power dissipation in W: 153 W for severe applications; 201 W for standard applications

Utilisation category AC-53A

Type of start Start with torque control (current limited to 5 In)

Icl nominal current:

62 A for connection in the motor supply line for standard applications

62 A for connection in the motor supply line for severe applications

107 A for connection to the motor delta terminals for standard applications

107 A for connection to the motor delta terminals for severe applications

IP degree of protection IP20



Complementary:

Assembly style With heat sink

Function available External bypass (optional)

Power supply voltage limits 195…456 V

Power supply frequency 50...60 Hz - 5...5 %

Power supply frequency limits 47.5...63 Hz

Device connection To the motor delta terminals In the motor supply line



Factory setting current 57 A

[Uc] control circuit voltage 220 - 15 % to 415 + 10 %, 50/60 Hz

Control circuit consumption 30 W

Output absolute accuracy precision +/- 5 %

Minimum switching current 10 mA at 6 V DC for relay outputs

ATS48D62Q Schneider Soft Starter For Asynchronous Motor 0
