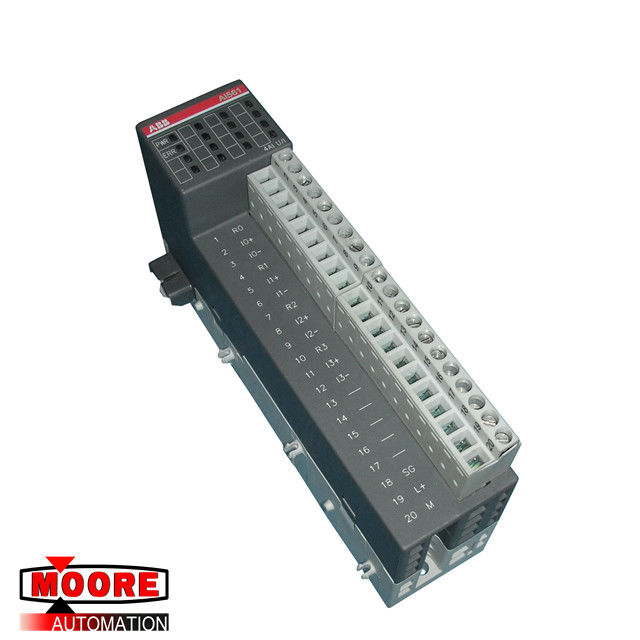

AI561 A1 1TNE968902R1101 Abb Analog Input Module 24vdc 1.5w
  • AI561 A1 1TNE968902R1101 Abb Analog Input Module 24vdc 1.5w

AI561 A1 1TNE968902R1101 Abb Analog Input Module 24vdc 1.5w

Place of Origin SWEDEN
Brand Name ABB
Certification CO.CQ
Model Number AI561 A1
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
AI561 A1
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
ABB
Weight:
4lbs
High Light:

advant ocs

,

advant controller 31

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description





AI561 A1 1TNE968902R1101 ABB Analog Input Module 24vdc,1.5w



Brand/Manufacturer ABB/SWEDEN
Part Number

AI561 A1

Alternate Part Number 1TNE968902R1101
Description Analog Input Module
Dimennsions 8.4cm x 3.4cm x 13.5cm
Weight 0.12kg



Product Details

Technical Data

Process supply voltage L+:

Connections Terminal 19 for L+ (+24 VDC) and terminal 20 for M (0 V)

Rated value 24 VDC

Current consumption via L+ terminal 0.1 A

Inrush current (at power up) 0.05 A2s

Max. ripple 5 %

Protection against reversed voltage Yes

Protection fuse for L+ Recommended

Current consumption from 24 VDC power supply at the terminals UP/L+ and ZP/M of the CPU/bus module Ca. 10 mA

Galvanic isolation No

Surge-voltage (max.) 35 VDC for 0.5 s

Max. power dissipation within the module 2.7 W

Weight Ca. 120 g

Mounting position Horizontal or vertical

Cooling The natural convection cooling must not be hindered by cable ducts or other parts in the switchgear cabinet.



Technical Data of the Analog Inputs

Number of channels per module: 4 individually configurable voltage or current inputs

Distribution of channels into groups: 1 (4 channels per group)

Resolution:

Unipolar Voltage: 0 V...+5 V; 0 V...+10 V: 12 bits

Current 0 mA...20 mA; 4 mA...20 mA: 12 bits

Bipolar Voltage -2.5 V...+2.5 V; -5 V...+5 V: 11 bits plus sign



Connection of the signals I0- to I3- : Terminals 3, 6, 9, 12

Connection of the signals I0+ to I3+ : Terminals 2, 5, 8, 11

Input type: Differential

Galvanic isolation: No galvanic isolation between the inputs and the I/O bus

Common mode input range: Signal voltage plus common mode voltage must be within ±12 V

AI561 A1 1TNE968902R1101 Abb Analog Input Module 24vdc 1.5w 0

AI561 A1 1TNE968902R1101 Abb Analog Input Module 24vdc 1.5w 1
