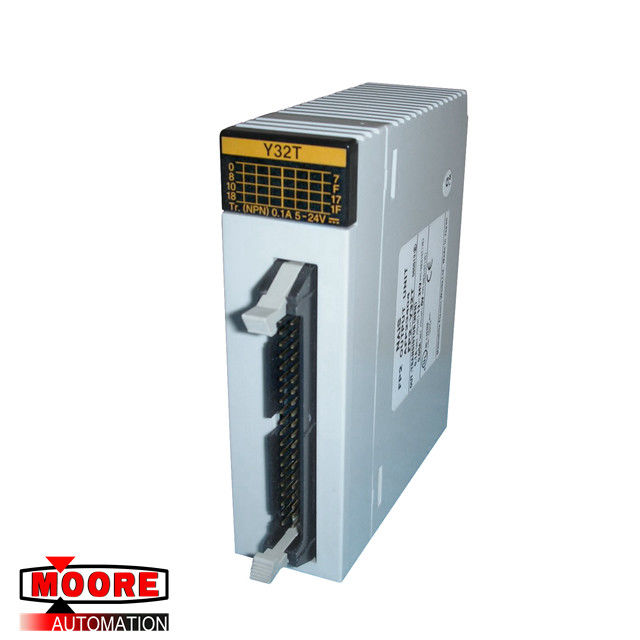

FP2-Y32T NAIS FP2 Output Unit

FP2-Y32T NAIS FP2 OUTPUT UNIT

Product Details

General Specifications

Rated operating voltage: 24 V DC

Operating voltage range: 21.6 V to 26.4 V DC

Rated current consumption: 300 mA or less

Breakdown voltage: 500 V AC for 1 minute between I/O terminal and powersupply/ground terminal1500 V AC for 1 minute between I/O terminal and powersupply/ground terminal (relay output type only).

Insulation resistance: min. 100 MΩ (measured with a 500 V DC megger)between I/O terminal and ground terminal.

Vibration resistance: 10 Hz to 55 Hz, 1 cycle/min: double amplitude of 0.75 mm/0.030 in., 10 min on 3 axes.

PC FPSOFT

FPSOFT Ver. 1:Program editing software for windows for use withcommercially available computers. (Systemrequired: IBM PC486/66 or up with 8 MB RAM,7 MB disk free space, and Windows 3.1 or newer).

NPST-GRsoftware Ver.4: Program editing software for use with commerciallyavailable computers. (System required: IBM PC-ATavailable computers. (System required: IBM PC ATor 100 % compatible with 800 KB or more EMS, 2MB or more hard disk space, MS-DOS Ver. 6.2 orlater, and EGA or VGA display mode).

FP PC cable: Cable needed for connection between the tool portof FP0 control unit and the RS232C port (25 pins)of RS232C port adapter.

Programmer IIVer. 2: Handheld programming device

FP peripheral cable: Cable needed for connection between the tool portof FP0 control unit and the FP programmer II'scommunication port.

RUN(green): Illuminates when in the RUN mode and indicates the execution of aprogram. It flashes during forced input/output.

PROG.(green): Illuminates when in the PROG. mode and indicates that operation has stopped.

ERROR/ALARM: Flashes when an error is detected during the self-diagnostic function.(red)Illuminates if a hardware error occurs, or if operation slows because ofthe program, and the watchdog timer is activated.
