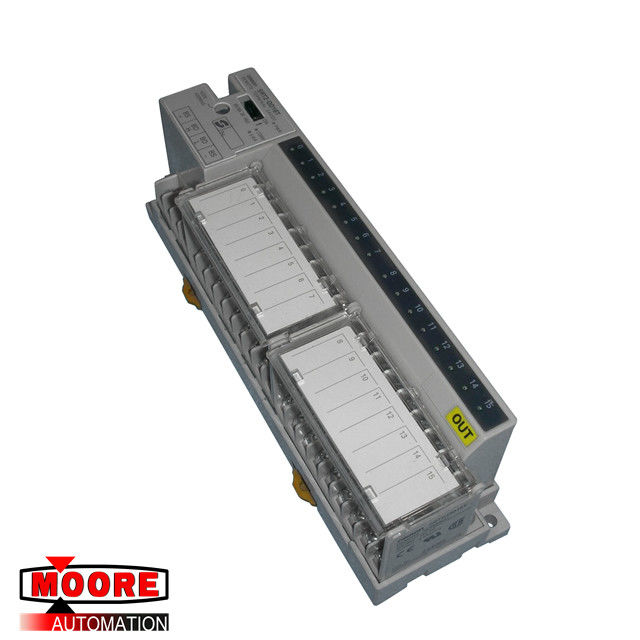

Omron Remote Terminal Source SRT2-OD16T

Minimum Order Quantity : 1 Price : inquiry
Packaging Details : new and original with factory sealed Delivery Time : today
Payment Terms : T/T Supply Ability : 10 pieces a day
Place of Origin: JAPAN Brand Name: OMRON
Certification: CO.CQ Model Number: SRT2-OD16T

Detail Information

Manufacture Year: 2020 Con 6DS1311-8AEtrol System: SRT2-OD16T
Application: Nuclear Power Plant Lead Time: In Stock
Description: OMRON Weight: 4lbs

Product Description



SRT2-OD16T OMRON REMOTE TERMINAL SOURCE:24V DC OUTPUT



Brand/Manufacturer OMRON/JAPAN
Part Number

SRT2-OD16T

Alternate Part Number

SRT2-OD16T

Description REMOTE TERMINAL SOURCE:24V DC OUTPUT
Dimennsions 4cm x 6cm x 11cm
Weight 0.15kg



Product Details

SRT2 models support both high-speed communications (750 kbps) and longdistance communications (500 m) systems, switch selected.

SRT1 models support only high-speed communications systems.

Two independent power supplies can be used because the I/O terminals are isolated from the internal circuits.

DIN track and screw mounting.



Outputs

Rated output current 0.3 A/point

Residual voltage 0.6 V max.

Leakage current 0.1 mA max.

Insulation method Photocoupler

Output indicators LED (yellow)



Communications power supply voltage 14 to 26.4 VDC

I/O power supply voltage 24 VDC +10%/--15%

I/O power supply current 1 A max.

Current consumption (See Note) 50 mA max. at 24 VDC

Connection method:

Multi-drop method and T-branch method;

Secondary branches cannot be connected to T-branch lines.

Connecting Units:

4-point and 8-point Terminals: 16 Input Terminals and 16 Output Terminals per Master;

16-point Terminals: 8 Input Terminals and 8 Output Terminals per Master.

Mounting strength No damage when 50 N pull load was applied for 10 s in all directions

Terminal strength No damage when 50 N pull load was applied for 10 s

Screw tightening torque 0.6 to 1.18 N : m

Ambient temperature:

Operating: 0°C to 55°C (32°F to 131°F) with no icing or condensation;

Storage: --20°C to 65°C (--4°F to 149°F) with no icing or condensation.

Ambient humidity Operating: 35% to 85% RH

Omron Remote Terminal Source SRT2-OD16T
