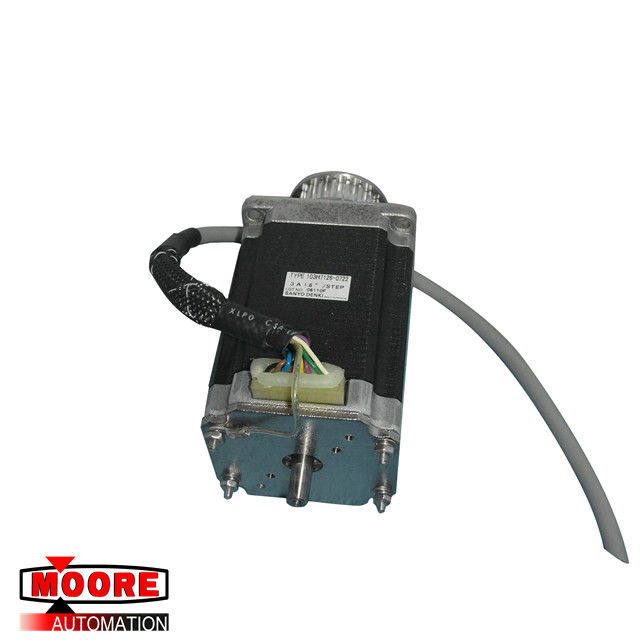

103H7126-0722 Sanyo Miniature Stepper Motor

103H7126-0722 SANYO STEPPING MOTOR

Product Details

Applications:

Various inductance, lamp drivers for electrical equipment.

Inverters, converters (strobo, flash, fluorescent lamp lighting circuit).

Power amp (high-power care stereo, motor control).

High-speed siwtching (switching regulators, driver).

Features:

Low saturation voltage.

Excellent dependence of hFE on current.

Fast switching time.

Specifications:

Collector-to-Base Voltage (–)80 V

Collector-to-Emitter Voltage (–)60 V

Emitter-to-Base Voltage (–)5 V

Collector Current (–)15A

Collector Current (Pulse) (–)20A

Collector Dissipation 80 W

Junction Temperature 150˚C

Storage Temperature –55 to +150˚C
