| Place of Origin: | JAPAN |
| Brand Name: | SUMTAK |
| Certification: | CO.CQ |
| Model Number: | IRH320 1000P/R/203 |

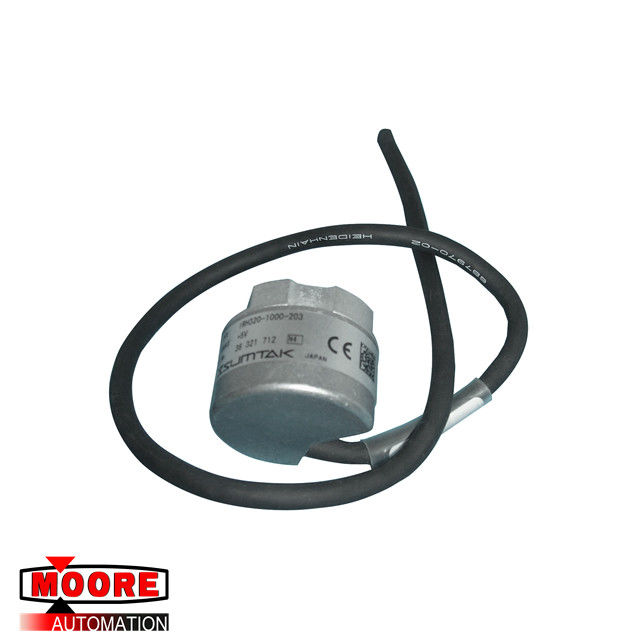

IRH320 1000P/R/203 SUMTAK ENCODER 5VDC
| Brand/Manufacturer | SUMTAK/JAPAN |
| Part Number |
IRH320 1000P/R/203 |
| Alternate Part Number |
IRH320 1000P/R/203 |
| Description | ENCODER |
| Dimennsions | 6.0cm x 5.1cm x 6.1cm |
| Weight | 0.29kg |
Product Details
Electrical Specifications
Supply Voltage (Vcc): 5V±0.5V
Supply Current (No load): ≦70mA
Output Type:Line Driver
Output Current:±10mA
Output Voltage: H ≧2.4V; L ≦0.5V
Max. Applied Voltage-
Min. Load Resistance-
Rise Time: ≦100ns
Fall Time: ≦100ns
Response Frequency: 0～300kHz
Bypass Capacitor (0V-FG): 0.22μF
Bypass Capacitor (Vcc-FG): 0.22μF
Determinate Time of ABZ signals, Output signal is not stable in 30ms after the power is on.
Square-wave Accuracy
～5000P/R
X1+X2=0.5T±0.1T; X2+X3=0.5T±0.1T; Xn≧0.15T (n=1,2,3,4); TM=0.25T±0.1T(=X2)
Position relationship of A&B channels and Z channel are as left.
5001～10000P/R (×2)
X1+X2=0.5P±0.15P; X2+X3=0.5P±0.15P; Xn≧0.1P (n=1,2,3,4); TM=0.25P±0.15P(=X2)
Position relationship of A&B channels and Z channel are as left. P=1.0T±0.1T
Signal Accuracy
～5000P/R
Accumulative Angle Error: ≦0.2T
Pitch Error : ±0.01T
Adjacent Pitch Error: ±0.005T
5001～10000P/R (×2)
Accumulative Angle Error: ≦0.4T
Pitch Error: ±0.1T
