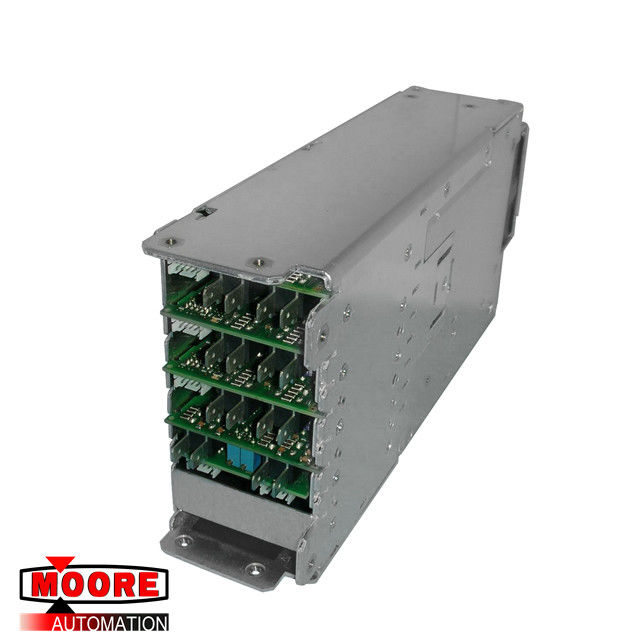

MV6500436A TDK - Lambda Alpha Ⅱ-650 Power Supply

Product Details:
Place of Origin: USA
Brand Name: TDK-Lambda
Certification: CO.CQ
Model Number: MV6500436A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: inquiry
Packaging Details: new and original with factory sealed
Delivery Time: today
Payment Terms: T/T
Supply Ability: 10 pieces a day
Contact Now

Detail Information

Manufacture Year: 2020 Con 6DS1311-8AEtrol System: MV6500436A
Application: Nuclear Power Plant Lead Time: In Stock
Description: TDK-Lambda Weight: 4lbs

Product Description



MV6500436A TDK-Lambda Alpha Ⅱ-650 Power Supply



Brand/Manufacturer TDK-Lambda /USA
Part Number MV6500436A
Alternate Part Number

MV6500436A

Description Alpha Ⅱ-650 Power Supply
Dimennsions 7.5cm x 19.6cm x 13.2cm
Weight 0.86kg



Product Details

Specifications

Input Voltage Range: 85 - 265VAC (47 - 440Hz)

Input Current Typ: 0.42 / 0.25 A

Inrush Current: 25 / 50 A

Leakage Current (240VAC, 60Hz): 0.75mA Max

Max Output Power: 16W; 17.5W

Efficiency (Typ): 71%

Overcurrent Protection - Yes, automatic recovery. Hiccup style on MTW30 & 60

Overvoltage Protection: V1: Zener Clamp

Operating Temperature: -20°C start up. -10°C to +60°C, derating linearily to 70% load above 50°C

Storage Temperature: -30°C to +75°C

Humidity (Non condensing) :10 - 90%RH (Operating & storage) at 35°C

Cooling: Convection

Withstand Voltage: Input to ground 2kVAC, Input to output 3kVAC, Output to ground 500VAC

Vibration (non operating) : 5 - 10Hz: 10mm amplitude, 10 - 200Hz: 2G (19.6m/s2)10m sweep time, 3 axis, 1 hour each

Shock - Acceleration: 60G (588m/s2) Half sine wave, 6 - 16ms pulse duration, 3x each direction

Safety Agency Approvals: UL60950-1, CSA C22.2 No 60950-1 (C-UL), EN60950-1

Immunity: EN61000-4-2 (Lv 4), -3, -4 (Lv 3), -5 (Lv 4), -6 (Lv 3), -8 (Lv 4), -11

Conducted EMI: FCC-Class B, EN55011-B, EN55022-B

MV6500436A TDK - Lambda Alpha Ⅱ-650 Power Supply



About TDK-Lambda

TDK-Lambda Corporation, a subsidiary of TDK Corporation, is a global supplier and recognized leader of power conversion products suited to many applications including; medical, industrial, broadcast, defense, factory automation and LED/LCD signage. With global sales in excess of $500 million, we have design, manufacturing, and sales locations in all five (5) key geographic locations: Japan, China, EMEA, ASEAN, and the Americas. TDK-Lambda's view is a "Power Supply" is more than just an electronic device. It is the "heart" of our customers’ systems and the core element of safety and reliability. This belief drives us to support our customers through all stages of the product life cycle; product development (design-in assistance, EMC, standards, safety certification), introduction (speed, logistics), growth (scale, cost), maturity (cost), and decline (EOL strategy, post support). Our history of providing reliable and innovative power supplies has earned us the reputation of being a trusted world-class organization. Our product catalog boasts over 6,000 models, including a range of 1.5W to 100kW AC-DC power supplies, High Voltage Power supplies, DC-DC converters, programmable AC-DC and DC-DC power supplies, and EMC/EMI noise filters. All global sites are ISO 9001, ISO 13485, and ISO 14001 certified.
