| Place of Origin | Netherlands |
| Brand Name | ASM |
| Certification | CO.CQ |
| Model Number | 64-21022B 03-21022/H 02-15912/AR |

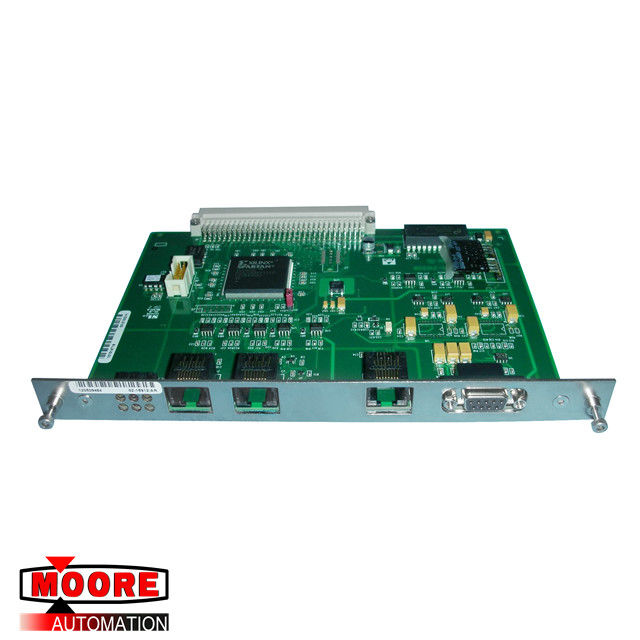

64-21022B 03-21022/H 02-15912/AR ASM Board plc module
| Brand/Manufacturer | ASM/Netherlands |
| Part Number |
64-21022B 03-21022/H 02-15912/AR |
| Alternate Part Number |
64-21022B 03-21022/H 02-15912/AR |
| Description | ASM Board |
| Dimennsions | 18.4cm x 11.1cm x 3.9cm |
| Weight | 0.23kg |
Product Details
The electronics associated with the controller include a detection bridge circuit which provides
an electrical signal relative to flow; an amplifier circuit to amplify and linearize the carrier flow
signal to O - 5 VDC; a detection bridge circuit which provides an electrical signal proportional
to source/carrier ratio and linearize the ratio signal to O - 5 VDC; and a multiplier circuit to multiply ratio (source/carrier) times carrier to give the source output signal.
The control section of the electronics uses a 0.5 to 5 VDC command signal. The command
voltage is compared with the source signal voltage and the difference amplified to power the
valve in the proper sense to regulate the carrier flow to give the commanded source level.
Capacitors in this feedback circuit provide dynamic compensation for optimum stability and
response. The electrical schematic is shown on section 5.
The unit is contained in a single package which results in an extremely rugged transducer,
shielded from electromagnetic fields and inherently protected from external short circuits.
The controller needs a + 15 VDC dual power supply.
