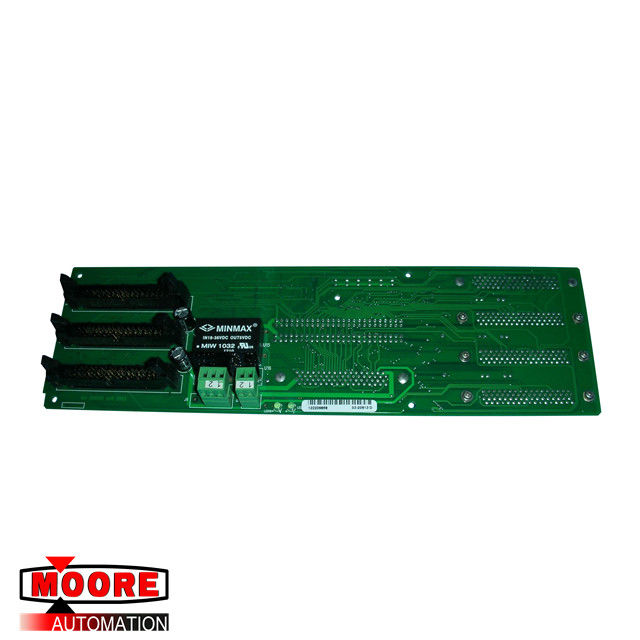

03-20913/D 64-20913B ASM Board IN18-36VDC OUT5VDC
| Brand/Manufacturer |
ASM/Netherlands |
| Part Number |
03-20913/D
|
| Alternate Part Number |
64-20913B
|
| Description |
ASM Board |
| Dimennsions |
17.9cm x 8.6cm x 3.1cm |
| Weight |
0.23kg |
Product Details
If it is determined that either of the sensor elements is open or shorted to case, or that the sensor tube is plugged, it will be necessary to replace the sensor assembly. This can be done by unsoldering the sensor leads from the P.C. board and removing the two screws which attach the sensor assembly to the base. The sensor assembly can then be removed and replaced. CAUTION: Before replacing the sensor assembly, the sensor element resistance should be checked and should measure as follows :
Upstream Ru = 175 ohms + 5 ohms
green to red Downstream Rd = 175 ohms + 5 ohms
Check that Ru – Rd < +-1 ohms
yellow to red Isolation 100 mega ohms
(all leads to sensor tube)
Examine the sensor seals (replace if necessary with new ones) and make sure they are seated with the open side toward the bottom of the assembly; pressurize the base and check for leakage. Resolder the sensor leads to the circuit board.
