| Place of Origin | CHINA |
| Brand Name | 3COM |
| Certification | CO.CQ |
| Model Number | 3C17304A |

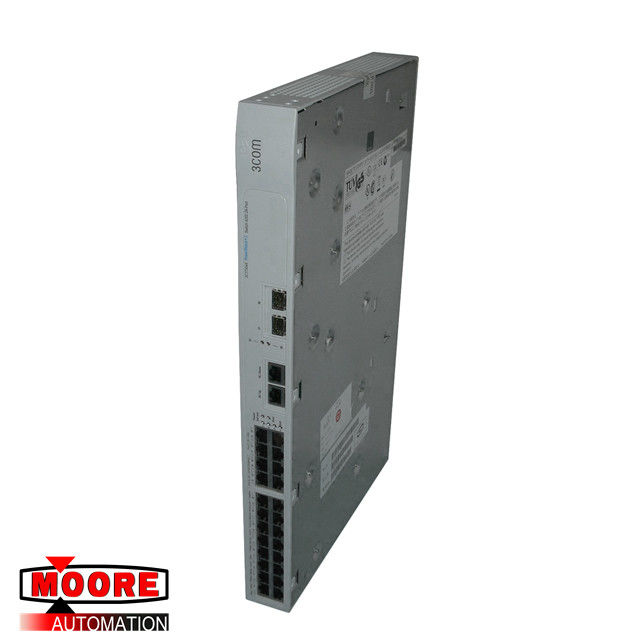

3C17304A 3COM Network Switch
| Brand/Manufacturer | 3COM/CHINA |
| Part Number |
3C17304A |
| Alternate Part Number |
3C17304A |
| Description | Network Switch |
| Dimennsions | 44.0cm x 27.4cm x 4.4cm |
| Weight | 2.7kg |
Product Details
Environmental Requirements:
Operating Temperature 0 °C to 40 °C (32 ° to 104 °F)
Storage Temperature –40 °C to +70 °C (-40 ° to 158 °F)
Operating Humidity 10–95% relative humidity, non-condensing
Standards EN60068 to 3Com schedule (Package testing: paras 2.1, 2.2, 2.30, and 2.32.
Operational testing: paras 2.1, 2.2, 2.30 and 2.13).
Safety: Agency Certifications UL60950, EN60950, CSA 22.2 No. 60950, IEC 60950
EMC-Emissions:
CISPR 22 Class A, EN55022 Class A, FCC Part 15 Subpart B Class A,
ICES-003 Class A, AS/NZS 3548 Class A, VCCI Class A, CNS 13438 Class A,
EN61000-3-2, EN61000-3-3
Immunity- EN 55024
Heat Dissipation: 60 watts maximum (205 Btu/h maximum)
Power Supply:
AC Line Frequency 50/60 Hz
Input Voltage 90–240 VAC
Current Rating 2.3 A (amps)(maximum)
Standards Supported
SNMP:
SNMP protocol (RFC 1157)
MIB-II (RFC 1213)
Bridge MIB (RFC 1493)
RMON MIB II (RFC 2021)
Remote Monitoring MIB (RFC 1757)
MAU MIB (RFC 2239)
Terminal Emulation: Telnet (RFC 854)
Protocols Used for Administration: UDP (RFC 768); IP (RFC 791); ICMP (RFC 792); TCP (RFC 793)
ARP (RFC 826); TFTP (RFC 783); DHCP (RFC 2131, RFC 2132, RFC 1534); BOOTP (RFC 951, RFC 1497)
