AX561 B2 1TNE968902R1301 ABB Analog Input / Output Module

Product Details:
Place of Origin: SWEDEN
Brand Name: ABB
Certification: CO.CQ
Model Number: AX561 B2 1TNE968902R1301
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: inquiry
Packaging Details: new and original with factory sealed
Delivery Time: today
Payment Terms: T/T
Supply Ability: 10 pieces a day
Contact Now

Detail Information

Manufacture Year: 2020 Con 6DS1311-8AEtrol System: AX561 B2 1TNE968902R1301
Application: Nuclear Power Plant Lead Time: In Stock
Description: ABB Weight: 4lbs

Product Description

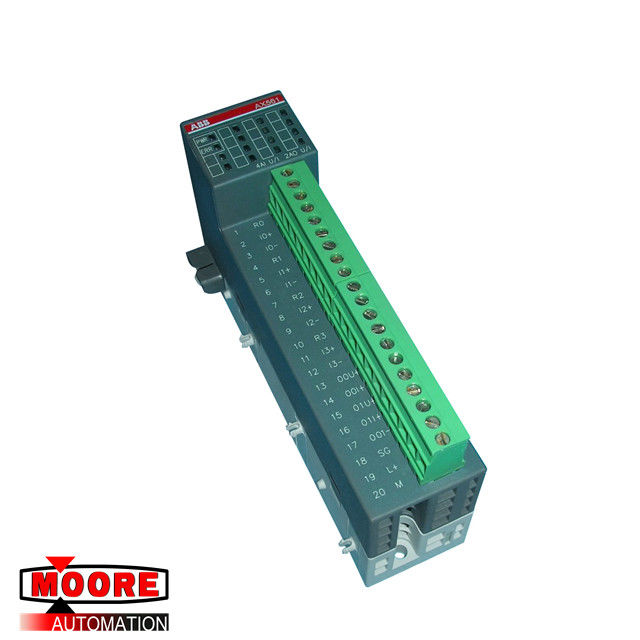

AX561 B2 1TNE968902R1301 ABB Analog Input/Output Module



Brand/Manufacturer ABB/SWEDEN
Part Number

AX561 B2

Alternate Part Number

1TNE968902R1301

Description Analog Input/Output Module
Dimennsions 3.4 cm x 8.5 cm x 13.5 cm
Weight 0.12kg



Product Details

Technical Data

Process supply voltage L+

Connections: Terminal 19 for L+ (+24 VDC) and terminal 20 for M (0 V);

Rated value: 24 VDC;

Current consumption via L+ terminal: 0.14 A + output load;

Inrush current (at power-up): 0.05 A;

Max. Ripple: 5 %;

Protection against reversed voltage: Yes;

Protection fuse for L+: Recommended;

Current consumption from 24 VDC power supply at the terminals UP/L+ and ZP/M of the

CPU/Bus Module: Ca. 5 mA;

Galvanic isolation: No;

Surge-voltage (max.): 35 VDC for 0.5 s.

Max. power dissipation within the module: 4.9 W

Mounting position: Horizontal or vertical

Cooling: The natural convection cooling must not be hindered by cable ducts or other parts in the switchgear cabinet.



Environmental Conditions

24 VDC

Voltage: 24 V (-15 %, +20 %)

Protection against reverse polarity: Yes

100 VAC

Voltage: 100 V (-15 %, +10 %)

Frequency: 50/60 Hz (-6 %, +4 %)

230 VAC

Voltage: 230 V (-15 %, +10 %)

Frequency: 50/60 Hz (-6 %, +4 %)

100...240 VAC wide range supply

Voltage: 100 V...240 V (-15 %, +10 %)

Frequency: 50/60 Hz (-6 %, +4 %)

Allowed interruptions of power supply, according to EN 61131-2

DC supply: Interruption < 10 ms, time between 2 interruptions >1 s, PS2

AC supply: Interruption < 0.5 periods, time between 2 interruptions > 1 s
