DX561 B2 1TNE968902R2301 Digital Input Output Module 24VDC 0.5A

Product Details:
Place of Origin: SWEDEN
Brand Name: ABB
Certification: CO.CQ
Model Number: DX561 B2 1TNE968902R2301
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: inquiry
Packaging Details: new and original with factory sealed
Delivery Time: today
Payment Terms: T/T
Supply Ability: 10 pieces a day
Contact Now

Detail Information

Manufacture Year: 2020 Con 6DS1311-8AEtrol System: DX561 B2 1TNE968902R2301
Application: Nuclear Power Plant Lead Time: In Stock
Description: ABB Weight: 4lbs

Product Description

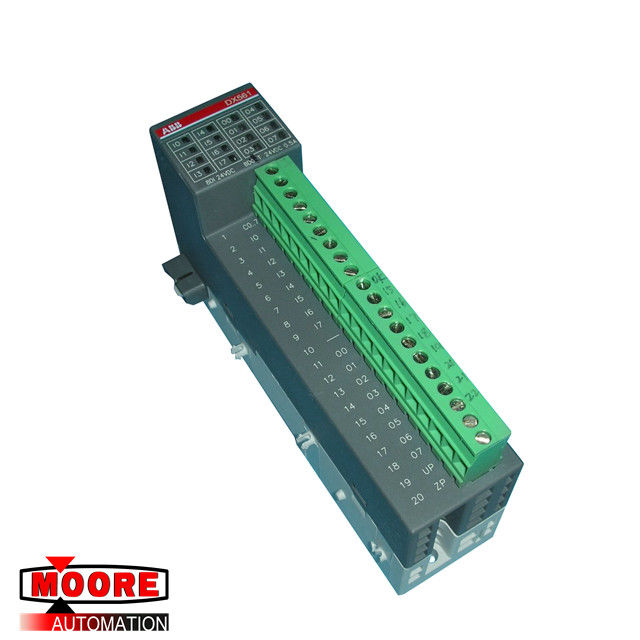

DX561 B2 1TNE968902R2301 ABB Digital Input/Output Module 24VDC 0.5A



Brand/Manufacturer ABB/SWEDEN
Part Number

DX561 B2

Alternate Part Number

1TNE968902R2301

Description Digital Input/Output Module
Dimennsions 3.4 cm x 8.5 cm x 13.5 cm
Weight 0.12kg



Product Details

Technical Data

Process supply voltage UP:

Connections: Terminal 19 for UP (+24 VDC) and terminal 20 for ZP (0 VDC)

Rated value: 24 VDC

Current consumption via UP terminal: 5 mA + max. 0.5 A per output

Max. Ripple: 5 %

Inrush current: 0.000002 A²s

Protection against reversed voltage: Yes

Rated protection fuse for UP: Recommended; the outputs must be protected by an 3 A fast fuse

Current consumption from 24 VDC power supply at the L+/UP and M/ZP terminals of the CPU/bus module: Ca. 10 mA

Galvanic isolation: Yes, between the input group and the output group and the rest of the module



Number of channels per module: 8

Distribution of the channels into groups: 1 group for 8 channels

Connections of the channels I0 to I7: Terminals 2 to 9

Reference potential for the channels I0 to I7: Terminal 1

Indication of the input signals: 1 yellow LED per channel; the LED is ON when the input signal is high (signal 1)

Monitoring point of input indicator: LED is part of the input circuitry

Input type according to EN 61131-2: Type 1 source; Type 1 sink

Input signal range: -24 VDC; +24 VDC

Signal: 0 -5 V...+3 V; -3 V...+5 V

Undefined signal: -15 V...+ 5 V; +5 V...+15 V

Signal: 1 -30 V...-15 V; +15 V...+30 V

Ripple with signal: 0 -5 V...+3 V; -3 V...+5 V

Ripple with signal: 1 -30 V...-15 V; +15 V...+30 V

Input current per channel:

Input voltage +24 V; Typ. 5 mA

Input voltage +5 V; Typ. 1 mA

Input voltage +15 V; > 2.5 mA

Input voltage +30 V; < 8 mA

Max. permissible leakage current (at 2-wire proximity switches): 1 mA

Input delay (0->1 or 1->0): Typ. 8 ms

Input data length: 1 byte

Max. cable length: Shielded 500 m; Unshielded 300 m
