| Place of Origin | USA |
| Brand Name | Lenze AC Tech |
| Certification | CO.CQ |
| Model Number | SM004S |

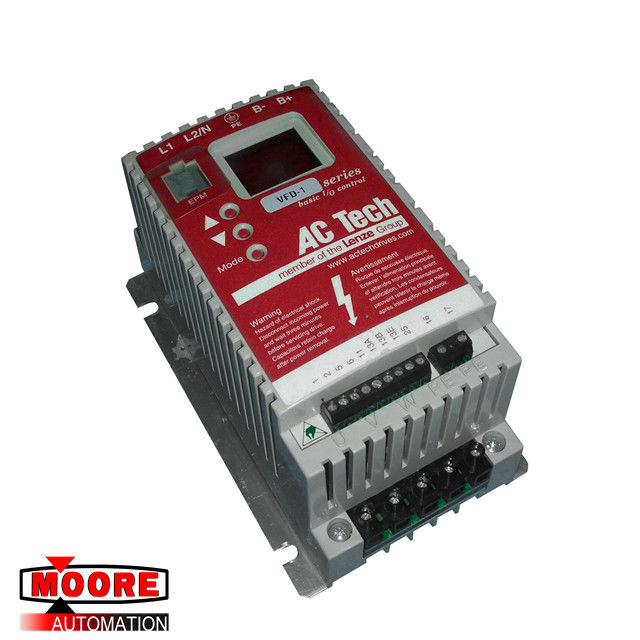

SM004S Lenze AC Tech SCM Series Variable Speed Drive
| Brand/Manufacturer | Lenze AC Tech/USA |
| Part Number |
SM004S |
| Alternate Part Number |
SM004S |
| Description | SCM Series Variable Speed Drive |
| Dimennsions | 7.4 cm x14.5 cm x 8.4 cm |
| Weight | 0.4kg |
Product Details
SM004S Lenze AC Tech SCM Series Variable Speed Drive, 0.33 HP (0.25 kW) rated power, 120VAC input, 1.7A @ 0-240 Hz output, NEMA Type 1 (IP20)
The SCM 0.33 HP (0.25 KW) drive features a 120 VAC 1A input in a Chassis (IP20) Enclosure. The SCM/SCL Series drives control 3-phase motors and have power ranges of 0.33 Hp-15 Hp (0.25 kW-11.0 kW) with a voltage class of 120 VAC through 480 VAC. The SCL drive has an integral line filter ideal for European Compliance to noise.
SCL/SCM MODEL DESIGNATION CODE
The SCL/SCM model number gives a full description of the basic drive unitEXAMPLE: SL210S = SCL Series, 208/240 Vac, 1 HP, single phase input.
Series:
SL = SCL Series Variable Speed AC Motor Drive with integral line filter
SM = SCM Series Variable Speed AC Motor Drive
Input Voltage:
0 = 120 Vac (For 110, 115, and 120 Vac; 50 or 60 Hz)
2 = 208/240 Vac (For 208, 220, 230, and 240 Vac; 50 or 60 Hz)
4 = 400/480 Vac (For 380, 415, 460, and 480 Vac; 50 or 60 Hz)
Input Phase:S = Single phase input only
Rating:
4 = 0.33 Hp (0.25 kW); 5 = 0.50 Hp (0.37 kW); 8 = 0.75 Hp (0.55 kW); 10 = 1 Hp (0.75 kW)
15 = 1.5 Hp (1.1 kW); 20 = 2 Hp (1.5 kW); 30 = 3 Hp (2.2 kW); 50 = 5 Hp (4.0 kW)
75 = 7.5 Hp (5.5 kW); 100 = 10 Hp (7.5 kW); 150 = 15 Hp (11 kW)
