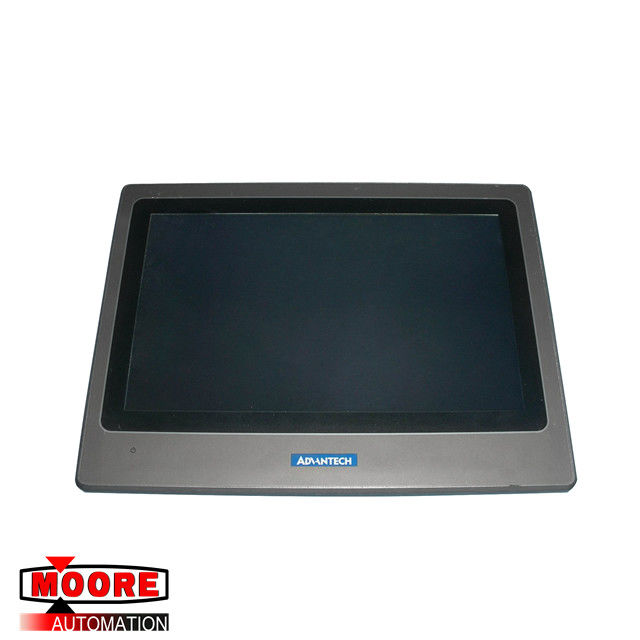

WOP-2070T-N2AE ADHNTECH Operator Panels
| Brand/Manufacturer |
ADHNTECH /CHINA |
| Part Number |
WOP-2070T-N2AE
|
| Alternate Part Number |
WOP-2070T-N2AE
|
| Description |
Operator Panels |
| Dimennsions |
18.8 cm x 14.3 cm x 3 cm |
| Weight |
0.6kg |
Product Details
To fulfill the stringent standards of the automation market, especially for packaging, label slitting, and robot dispensing applications, Advantech developed the WebOP-2000T series for diverse operations that involve PLCs, motion/thermal controllers, inverters, and sensors. Powered by an ARM9 32-bit, 200 MHz RISC processor with 128 MB flash memory, the WebOP-2000T series systems are available with LCDs of varying size (from 4.3 to 10.1"). Additionally, WebOP-2000T systems are bundled with Advantech’s WebAccess/HMI software – a web browser-based human-machine interface designed for HMI applications to reduce labor and improve manufacturing efficiency through visualization.
Features:
ARM9 32-bit, 200 MHz RISC processor with 128 MB flash memory
Includes a RTC, battery backup RAM, and Ethernet-based operator panels
Supports runtime data downloads through serial, Ethernet, and USB interfaces
Supports brightness controls via touch panel
Reliable firmware for 24/7 operation
Supports the WebAccess/HMI Designer development tool on Windows XP/ Vista/7
Easy to run applications on screens of any screen
Supports operation in both landscape and portrait mode
Supports over 450 PLC industrial communication protocols
Can communicate with up to four device types
Panel mount design ensures easy installation
IP66-rated front panel
Specifications:
Certification: CE, BSMI, CCC, UL, FCC Class A
Dimensions (W x H x D): 188 x 143.3 x 30 mm (7.4 x 5.64 x 1.18 in)
Cutout Dimensions: 175 x 132.5 mm (6.89 x 5.21 in)
Front Panel Thickness: 6 mm (0.23 in)
Operating System: HMI RTOS, WebOP Designer
Power Supply Voltage: 24VDC ±10%
Power Consumption: 10W
Enclosure Housing: Plastic
Mount Options: Panel
System Hardware:
CPU ARM9 32-bit, 200 MHz RISC processor
Battery Backup Memory 128KB
Flash Memory 8MB/ 8MB + 128M NAND flash
Power-On LED Yes
Communication LED No
Front USB Access No
