| Place of Origin | UK |
| Brand Name | EUROTHERM |
| Certification | CO.CQ |
| Model Number | 456/062/28/43/060/001/00 |

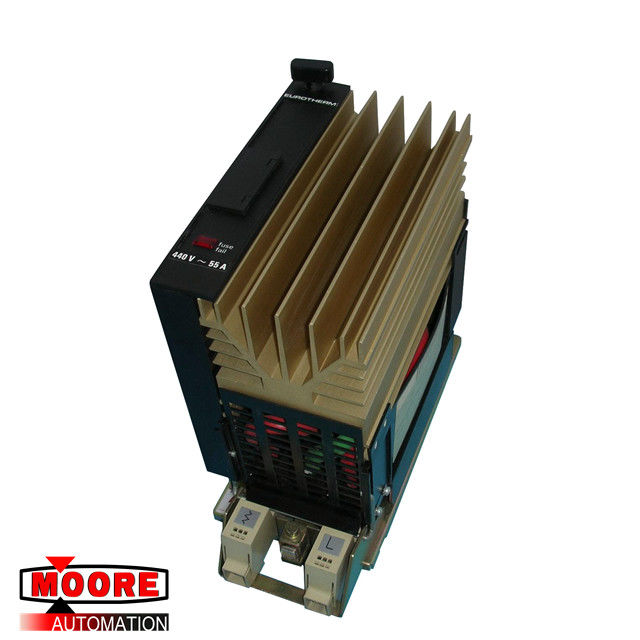

456/062/28/43/060/001/00 EUROTHERM Programmer Controller
| Brand/Manufacturer |
EUROTHERM /UK |
| Part Number |
456/062/28/43/060/001/00 |
| Alternate Part Number |
456/062/28/43/060/001/00 |
| Description | Programmer Controller |
| Dimennsions | 7.6 cm x 14.8cm x 15.6 cm |
| Weight | 0.76kg |
Product Details
Specification
Process Variable Input
Calibration accuracy: <±0.25% of reading ±1LSD (Note 1)
Sample rate: 4 Hz (250 ms)
Isolation: 264 V ac double insulation from the PSU and communication
Resolution: (μV) <0.5 μV with 1.6 sec filter
Resolution (effective bits): >17 bits
Linearisation accuracy: < 0.1% of reading
Drift with temperature: <50 ppm (typical) <100 ppm (worst case)
Common mode rejection: 48-62 Hz, >-120 dB
Series mode rejection: 48-62 Hz, >-93 dB
Input impedance: 100 MΩ
Cold junction compensation: >30:1 rejection of ambient change
External cold junction: Reference of 0° C
Cold junction accuracy: <±1° C at 25° C ambient
Linear(process) input range: –10 to 80 mV, 0 to 10 V with 100 KΩ/806 Ω external divider module
Thermocouple types: K, J, N, R, S, B, L, T, C, custom download
Resistance thermometer types: 3-wire Pt100 DIN 43760
Bulb current: 0.2 mA
Lead compensation: No compensation error for 22 Ω in all leads
Input filter: Off to 59.9 s
Zero offset: User adjustable over full range
User calibration: 2-point gain & offset
