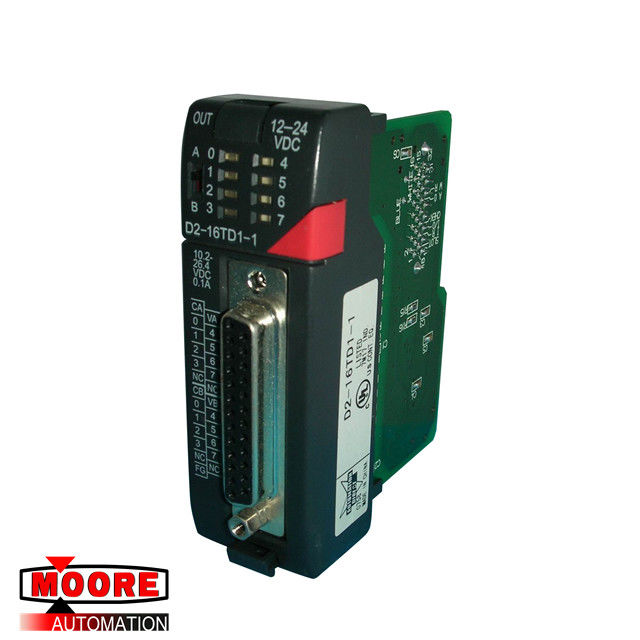

D2-16TD1-1 KOYO Output Module 12-24 VDC
  • D2-16TD1-1 KOYO Output Module 12-24 VDC
  • D2-16TD1-1 KOYO Output Module 12-24 VDC

D2-16TD1-1 KOYO Output Module 12-24 VDC

Place of Origin CHINA
Brand Name KOYO
Certification CO.CQ
Model Number D2-16TD1-1
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
D2-16TD1-1
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
KOYO
Weight:
4lbs
High Light:

dcs automation

,

sst pb3 clx rll

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



D2-16TD1-1 KOYO Output Module 12-24 VDC



Brand/Manufacturer

KOYO /CHINA

Part Number

D2-16TD1-1

Alternate Part Number

D2-16TD1-1

Description Output Module
Dimennsions 11.3 cm x 14.8cm x 4.1 cm
Weight 0.8kg



Product Details

Outputs per Module 16 (current sourcing)

Commons per Module 2

Output Type NPN open collector

Operating Voltage 10.2-26.4 VDC

Peak Voltage 30VDC

ON Voltage Drop 1.0 VDC maximum

AC Frequency N/A

Minimum Load Current 0.2 mA

Max Load Current 0.1 A/point

1.6 A/module

Max Leakage Current 0.1 mA @ 30VDC

Max Inrush Current 150mA for 10ms

Base Power Required 5VDC 200mA

OFF to ON Response 0.5 ms

ON to OFF Response 0.5 ms

Terminal Type (included) Removable; D2-16IOCON

Status Indicator Logic side

Weight 2.8 oz. (80g)

Fuses None
