| Place of Origin | CHINA |
| Brand Name | KOYO |
| Certification | CO.CQ |
| Model Number | GC-56LC2 |

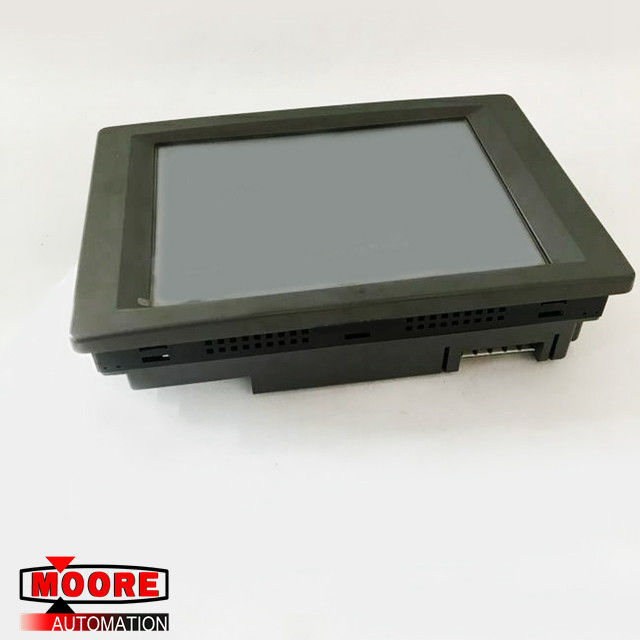

GC-56LC2 KOYO Operator Panel
| Brand/Manufacturer |
KOYO /CHINA |
| Part Number |
GC-56LC2 |
| Alternate Part Number |
GC-56LC2 |
| Description | Operator Panel |
| Dimennsions | 16.5 cm x 13.8cm x 6.1 cm |
| Weight | 0.75kg |
Product Details
Interaction type: Resistive touch, 1 million finger touch operations
Processor: Intel Atom (1.1GHz)
Main memory: 1GB (DDR2)
Application memory: >=1.4GB
External storage media: 1 × SD card slot (or SDHC with latest image loaded)
Realtime clock: Yes
Ethernet (shielded RJ 45): 2 built-in ports: 1 x 10/100/1000 Mbit/s, 1 x 100 Mbit/s
USB: 3 × USB 2.0, max. 500 mA
Serial port 1/2: 2 combined ports: 2 × RS232, 2 × RS422/485
Power supply: +24 VDC (18-32 VDC)
Power consumption: 22W
Protection (front/rear): IP65 / IP20
Operating temperature: -10 to +50 °C
Relative operating humidity: 5-85% non-condensing
Storage temperature: -20 to +70 °C
Vibration and schock: 0.7 G / 10 G
