| Place of Origin | USA |
| Brand Name | Leadshine |
| Certification | CO.CQ |
| Model Number | H2-2206 |

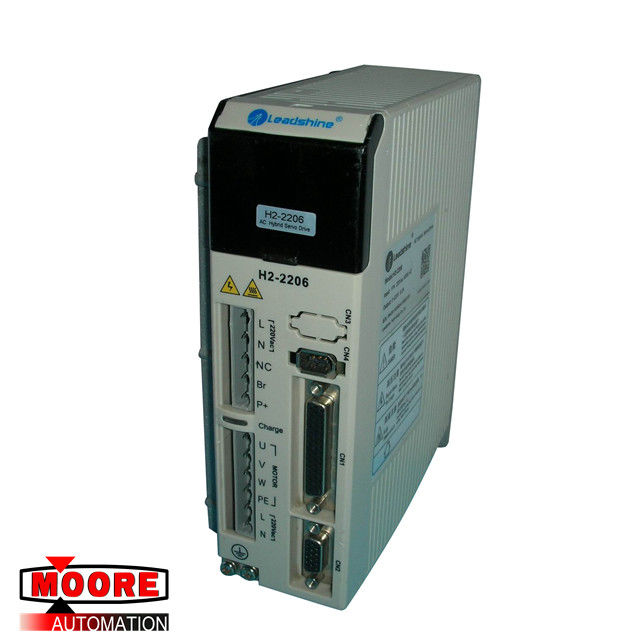

H2-2206 Leadshine AC Hybrid Servo Drive
| Brand/Manufacturer |
Leadshine/USA |
| Part Number |
H2-2206 |
| Alternate Part Number |
H2-2206 |
| Description | AC Hybrid Servo Drive |
| Dimennsions | 9.0 cm x 13.5cm x 18.4 cm |
| Weight | 0.85kg |
Product Details
Features
Low cost and good high-speed torque
Supply voltage up to +50VDC
Output current up to 4.2A
Optically isolated input signals
Pulse frequency up to 300 KHz
Automatic idle-current reduction
3-state current control technology
15 selectable resolutions
Suitable for 2-phase and 4-phase motors
DIP switch current setting with 8 different values
CW/CCW mode available (optional)
Over-voltage and short-circuit protection
Small size (118x75.5x33mm)
Electrical Specifications
Output current: 1.0 - 4.2 (3.0A RMS) A
Supply voltage: 20-50 VDC
Logic signal current: 7-16 mA
Pulse input frequency: 0 - 300 KHz
Isolation resistance: 500 MΩ
