| Place of Origin | CHINA |
| Brand Name | Matrox CronosPlus |
| Certification | CO.CQ |
| Model Number | Y7141-0002 REV-A |

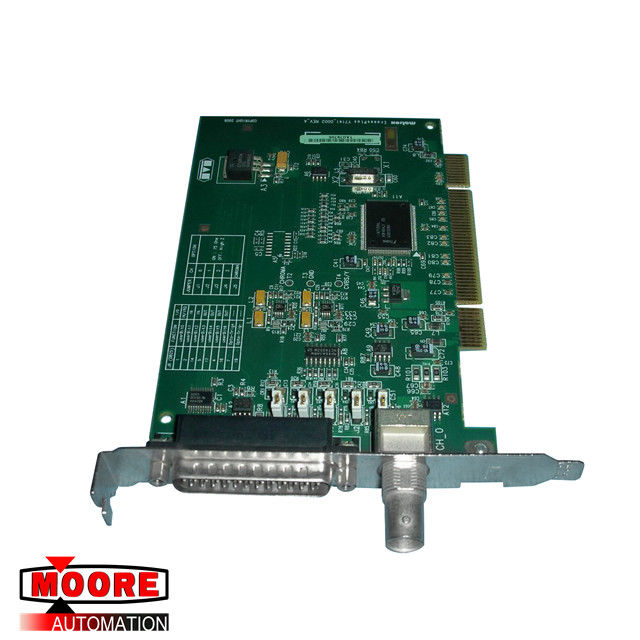

Y7141-0002 REV-A Matrox CronosPlus Frame Grabber Card
| Brand/Manufacturer | Matrox CronosPlus /CHINA |
| Part Number |
Y7141-0002 REV-A |
| Alternate Part Number |
Y7141-0002 REV-A |
| Description | Frame Grabber Card |
| Dimennsions | 13.7cm x 9.1cm x 3.0 cm |
| Weight | 0.25kg |
Product Details
Key features:
video capture board for PCI form factor
captures from NTSC, PAL, RS-170 and CCIR video sources
connect up to 4 CVBS or 1 Y/C input(s)
trigger input
7 TTL auxiliary I/Os1
32-bit/33MHz PCI-bus master
programmed using Matrox Imaging Library (MIL) sold separately
supports 32-bit Microsoft Windows XP/Vista
Specifications
Acquisition:
analog composite (CVBS) or Y/C NTSC/PAL
analog RS-170/CCIR
automatic gain control (AGC)
BGR32 packed, RGB24 packed, YUV422 packed and MONO8 pixel formats
Opto trigger input (sync. to video)
7 TTL auxiliary inputs and outputs1
connect up to 4 CVBS or 1 Y/C
Formatting:
input cropping (ROI capture)
vertical/horizontal flip
arbitrary downscaling to 1/64th of a field
Host interface:
32-bit/33 MHz PCI bus master
interrupts for start and end of field, frame and sequence capture
universal 32-bit card edge connector
Connectors:
1 BNC connector for composite video input
DB25 for TTL I/Os, 4 composite video inputs, Y/C input and trigger
