| Place of Origin | JAPAN |
| Brand Name | MITSUBISHI |
| Certification | CO.CQ |
| Model Number | MR-J3-100B |

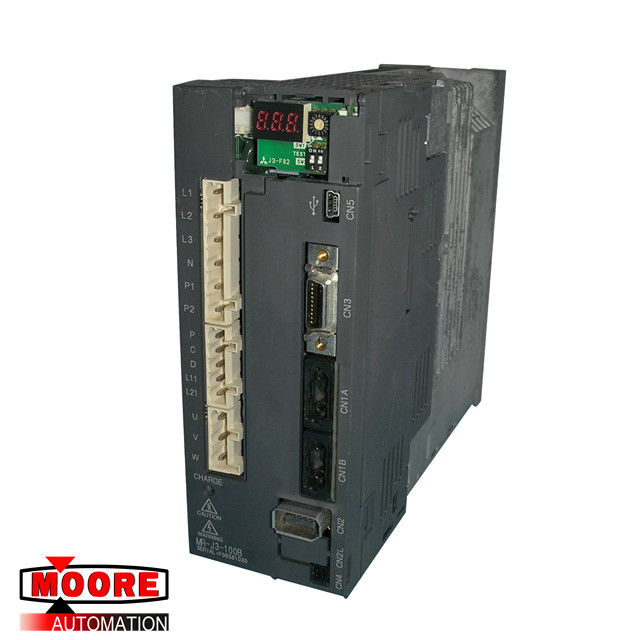

MR-J3-100B MRJ3100B MITSUBISHI Servo Driver 2.5AMP 200-230VAC 3 PHASE
| Brand/Manufacturer | MITSUBISHI / JAPAN |
| Part Number |
MR-J3-100B |
| Alternate Part Number |
MR-J3-100B |
| Description | Servo Driver |
| Dimennsions | 6.5cm x 11.2cm x 20.3 cm |
| Weight | 1.4kg |
Product Details
The Mitsubishi MELSERVO-J3 series general-purpose AC servo has further higher performance and higher functions compared to the current MELSERVO-J2-Super series.The MR-J3-B servo amplifier connects to servo system controller and others via high speed synchronous network and operates by directly reading position data. The rotation speed/direction control of servo motor and the high accuracy positioning are executed with the data from command module. SSCNET equipped by theMR-J3-B servo amplifier greatly improved its communication speed and noise tolerance by adopting optical communication system compared to the current SSCNET. For wiring distance, 50m of the maximum distance between electrodes is also offered.The torque limit with clamping circuit is put on the servo amplifier in order to protect the power transistor of main circuit from the over current caused by rapid acceleration/deceleration or overload. In addition, torque limit value can be changed to desired value with parameter.
Specifications
Voltage/frequency: 3-phase or 1-phase 200 to 230VAC, 50/60Hz
Permissible voltage fluctuation: 3-phase or 1-phase 200 to 230VAC: 170 to 253VAC
Permissible frequency fluctuation: Within 5%
Power supply capacity: Refer to section 10.2
Inrush current: Refer to section 10.5
Control circuit power supply:
Voltage,frequency: 1-phase 200 to 230VAC, 50/60Hz
Permissible voltage fluctuation: 1-phase 170 to 253VAC
Permissible frequency fluctuation: Within 5%
Input: 30W
Inrush current: Refer to section 10.5
Control System: Sine-wave PWM control, current control system
Protective functions: Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal relay),servo motor overheat protection, encoder error protection, regenerative error protection,undervoltage, instantaneous power failure protection, overspeed protection, excessive error protection.
