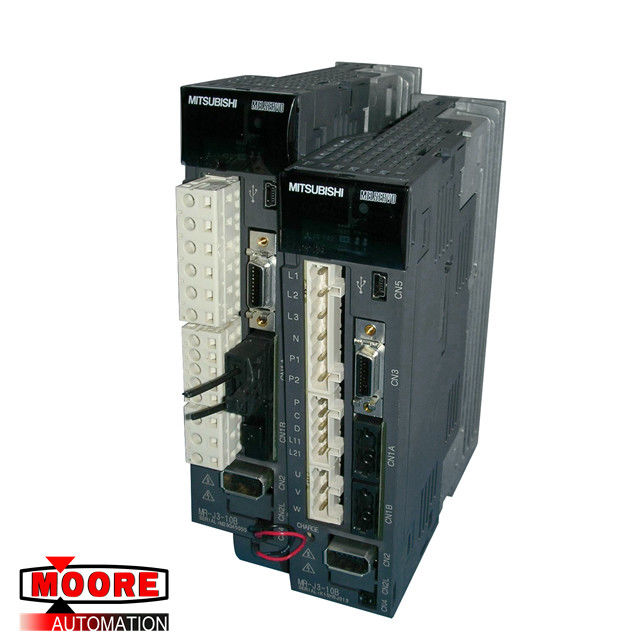

MR-J3-10B MRJ310B MITSUBISHI Servo Driver 2.5AMP 200-230VAC 3 PHASE

MR-J3-10B MRJ310B MITSUBISHI Servo Driver 2.5AMP 200-230VAC 3 PHASE

Product Details

The Mitsubishi MELSERVO-J3 series general-purpose AC servo has further higher performance and higher functions compared to the current MELSERVO-J2-Super series.The MR-J3-B servo amplifier connects to servo system controller and others via high speed synchronous network and operates by directly reading position data. The rotation speed/direction control of servo motor and the high accuracy positioning are executed with the data from command module. SSCNET equipped by theMR-J3-B servo amplifier greatly improved its communication speed and noise tolerance by adopting optical communication system compared to the current SSCNET. For wiring distance, 50m of the maximum distance between electrodes is also offered.The torque limit with clamping circuit is put on the servo amplifier in order to protect the power transistor of main circuit from the over current caused by rapid acceleration/deceleration or overload. In addition, torque limit value can be changed to desired value with parameter.

Specifications

Voltage/frequency: 3-phase or 1-phase 200 to 230VAC, 50/60Hz

Permissible voltage fluctuation: 3-phase or 1-phase 200 to 230VAC: 170 to 253VAC

Permissible frequency fluctuation: Within 5%

Power supply capacity: Refer to section 10.2

Inrush current: Refer to section 10.5

Control System: Sine-wave PWM control, current control system

Function

High-resolution encoder: High-resolution encoder of 262144 pulses/rev is used as a servo motor encoder.

Absolute position detection system: Merely setting a home position once makes home position return unnecessary at every power-on.

Gain changing function: You can switch between gains during rotation and gains during stop or use an external signal to change gains during operation.

Advanced vibration suppression control: This function suppresses vibration at the arm end or residual vibration.

Low-pass filter: Suppresses high-frequency resonance which occurs as servo system response is increased.

Machine analyzer function: Analyzes the frequency characteristic of the mechanical system by simply connecting a servo configuration software-installed personal computer and servo amplifier.MR Configurator is necessary for this function.
