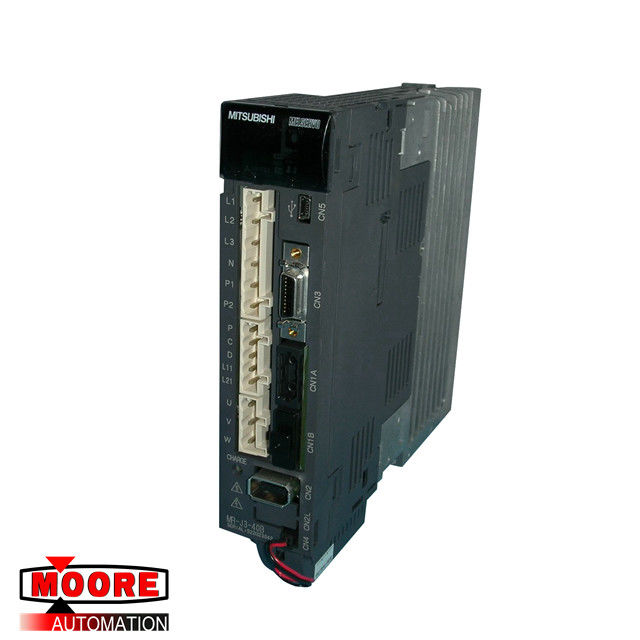

MR-J3-40B MRJ340B MITSUBISHI Servo Driver 400W 200V
  • MR-J3-40B MRJ340B MITSUBISHI Servo Driver 400W 200V
  • MR-J3-40B MRJ340B MITSUBISHI Servo Driver 400W 200V

MR-J3-40B MRJ340B MITSUBISHI Servo Driver 400W 200V

Place of Origin JAPAN
Brand Name MITSUBISHI
Certification CO.CQ
Model Number MR-J3-40B
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
MR-J3-40B
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
MITSUBISHI
Weight:
4lbs
High Light:

dcs automation

,

sst pb3 clx rll

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description

MR-J3-40B MRJ340B MITSUBISHI Servo Driver 400W 200V



Brand/Manufacturer MITSUBISHI / JAPAN
Part Number

MR-J3-40B

Alternate Part Number

MR-J3-40B

Description Servo Driver
Dimennsions 6.5cm x 11.0cm x 20.4 cm
Weight 1.5kg



Product Details

The Mitsubishi MELSERVO-J3 series general-purpose AC servo has further higher performance and higher functions compared to the current MELSERVO-J2-Super series.The MR-J3-B servo amplifier connects to servo system controller and others via high speed synchronous network and operates by directly reading position data. The rotation speed/direction control of servo motor and the high accuracy positioning are executed with the data from command module. SSCNET equipped by theMR-J3-B servo amplifier greatly improved its communication speed and noise tolerance by adopting optical communication system compared to the current SSCNET. For wiring distance, 50m of the maximum distance between electrodes is also offered.The torque limit with clamping circuit is put on the servo amplifier in order to protect the power transistor of main circuit from the over current caused by rapid acceleration/deceleration or overload. In addition, torque limit value can be changed to desired value with parameter.



Specifications

Voltage/frequency: 3-phase or 1-phase 200 to 230VAC, 50/60Hz

Permissible voltage fluctuation: 3-phase or 1-phase 200 to 230VAC: 170 to 253VAC

Permissible frequency fluctuation: Within 5%

Power supply capacity: Refer to section 10.2

Inrush current: Refer to section 10.5

Control System: Sine-wave PWM control, current control system

Protective functions: Overcurrent shut-off, regenerative over voltage shut-off, overload shut-off (electronic thermal relay),servo motor overheat protection, encoder error protection, regenerative error protection,undervoltage, instantaneous power failure protection, overspeed protection, excessive error protection.



Function

High-resolution encoder: High-resolution encoder of 262144 pulses/rev is used as a servo motor encoder.

Low-pass filter: Suppresses high-frequency resonance which occurs as servo system response is increased.

Machine simulation: Can simulate machine motions on a personal computer screen on the basis of the machine analyzer results.MR Configurator is necessary for this function.

Slight vibration suppression contro: Suppresses vibration of 1 pulse produced at a servo motor stop

Auto tuning: Automatically adjusts the gain to optimum value if load applied to the servomotor shaft varies. Higher in performance than MR-J2-Super series servo amplifier.

Brake until: Used when the regenerative option cannot provide enough regenerative power.Can be used the 5kW or more servo amplifier.
