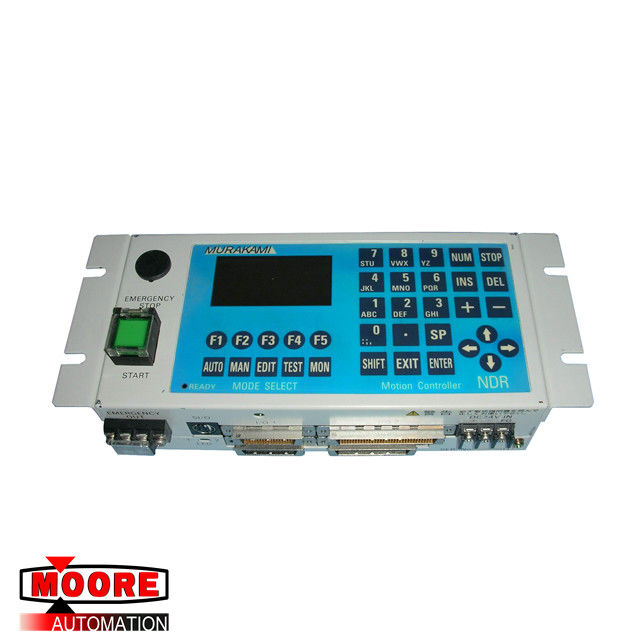

Murakami Motion Controller NDR

MURAKAMI MOTION CONTROLLER NDR

Product Details

Features

Packaged controller in 1 through 8 axis versions: DMC-42x0 where x=1,2,3,4,5,6,7,8 axes;

10/100 Base-T Ethernet port with Auto MDIX; (2)RS232 ports up to 115 kbaud;

User-configurable for stepper or servo motors on any combination of axes;

Accepts up to 22 MHz encoder frequencies for servos; Outputs up to 6 MHz for steppers;

Sample times as low as 31 microseconds per axis; fast command processing;

Advanced PID compensation with velocity and acceleration feed forward, integration limits, notch filter and low-pass filter;

Modes of motion include jogging, point-to-point positioning, position tracking, contouring, linear and circular interpolation, electronic gearing and electronic cam;

Ellipse scaling, slow-down around corners, infinite segment feed and feedrate override;

Multitasking for concurrent execution of up to eight application programs. Ultra-fast command processing;

Expanding, non-volatile memory for application programs, variables and arrays;

Optically isolated home input, forward and reverse limits for every axis;

Uncommitted I/O:

 1-4-axis: 8 optoisolated inputs and 8 TTL outputs

 5-8-axis: 16 optoisolated inputs and 16 TTL outputs

 8 uncommitted analog inputs

 High speed position latch and output compare

 64 additional 5V TTL I/O; Add more

 I/O with RIO-471xx PLC

Accepts 90 –250 V AC, 50–60 Hz input;

Communication drivers for Windows, Mac and Linux;

Custom hardware and firmware options available.

Moore News

NONFERROUS INDUSTRY
Non-ferrous Industry Capability
The sintering method and the Bayer process are currently the main methods for industrial production of alumina. Most of the alumina produced is produced by Bayer process.The Bayer-sintering hybrid method was first created, which greatly improved the total recovery of alumina.
With the continuous improvement of production technology, some new production methods such as lime Bayer method and beneficiation Bayer method are continuously applied to production.
The integrated process control system is a distributed control system.
The system consists of eight process control subsystems (workshop) for raw material grinding, lime digestion, dissolution, sedimentation, seed filtration, evaporation, product filtration, and roasting. Each workshop has an engineering station EWS and 2-3 operator stations OPS.
The data collection, real-time monitoring, data processing and other information transmission of the internal process parameters of the workshop are realized by the EtherNet/IP control network. The main production operations of the entire alumina plant are completed by these eight subsystems, each controlled by a ControlLogix controller.
