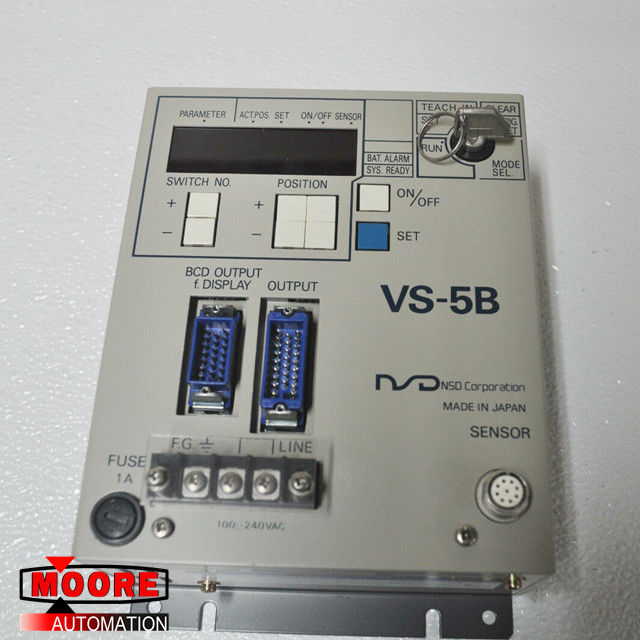

VS-5B-UDNP-0-1.0 NSD Output Controller 240VDC
| Brand/Manufacturer |
NSD / JAPAN |
| Part Number |
VS-5B-UDNP-0-1.0
|
| Alternate Part Number |
VS-5B-UDNP-0-1.0
|
| Description |
Output Controller |
| Dimennsions |
12.3cm x 8.0cm x 18.0 cm |
| Weight |
1.6kg |
Product Details
Supply voltage:
24 V DC Yes;
permissible range, lower limit (DC) 20.4 V;
permissible range, upper limit (DC) 28.8 V;
External protection for supply cables (recommendation) 2 A min.
Load voltage L+: Rated value (DC) 24 V; Reverse polarity protection Yes
Digital outputs:
Load voltage L+: Rated value (DC) 24 V ; (2L+) Reverse polarity protection No ; (2L+)
Inrush current: Current consumption (in no-load operation), typ. 200 mA
Power losses: Power loss, typ. 6 W
Memory: Type of memory other
Work memory: Integrated 256 kbyte; expandable No
Load memory:
pluggable (MMC) Yes；
pluggable (MMC), max. 8 Mbyte；
Data management on MMC (after last programming), min. 10 a
Moore News
NONFERROUS INDUSTRY
Non-ferrous Industry Capability
The sintering method and the Bayer process are currently the main methods for industrial production of alumina. Most of the alumina produced is produced by Bayer process.The Bayer-sintering hybrid method was first created, which greatly improved the total recovery of alumina.
With the continuous improvement of production technology, some new production methods such as lime Bayer method and beneficiation Bayer method are continuously applied to production.
The integrated process control system is a distributed control system.
The system consists of eight process control subsystems (workshop) for raw material grinding, lime digestion, dissolution, sedimentation, seed filtration, evaporation, product filtration, and roasting. Each workshop has an engineering station EWS and 2-3 operator stations OPS.
The data collection, real-time monitoring, data processing and other information transmission of the internal process parameters of the workshop are realized by the EtherNet/IP control network. The main production operations of the entire alumina plant are completed by these eight subsystems, each controlled by a ControlLogix controller.
