| Place of Origin | USA |
| Brand Name | AMETEK |
| Certification | CO.CQ |
| Model Number | DNC-T2010-R20 |

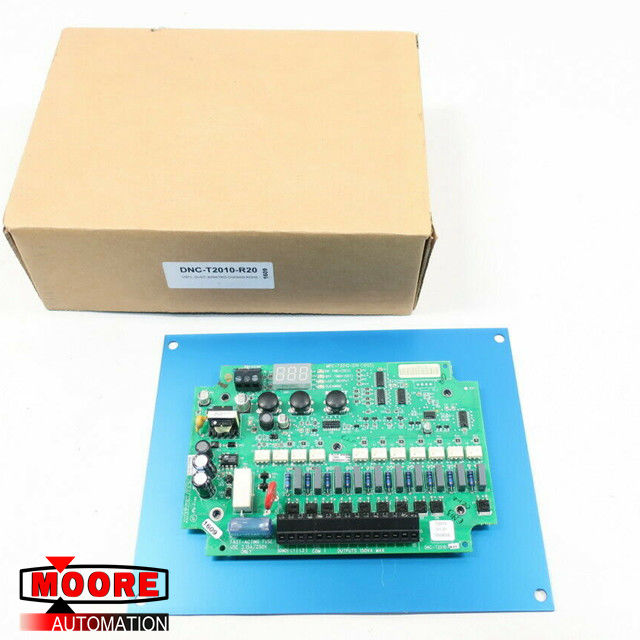

AMETEK DNC-T2010-R20 Dust Collection Time Control Pcb Board
| Brand/Manufacturer | AMETEK / USA |
| Part Number |
DNC-T2010-R20 |
| Alternate Part Number |
DNC-T2010-R20 |
| Description | Dust Collection Time Control Pcb Board |
| Dimennsions | 17.8cm x 12.0cm x 4.0 cm |
| Weight | 0.36kg |
Product Details
FEATURES
Universal voltage input: 95 to 265 VAC 50/60 Hz
One SKU: covers all voltages and time ranges required in your application
Advanced surface mount component technology: extremely reliable and trouble free operation
Digital microprocessor controlled circuitry: for precise pulse timing
Non-Volatile memory: for retaining programmed settings
3 digit, 7 segment numeric display: for ease of viewing controller operation
Easily programmable: on/off times and last output used via keypad
Small footprint: same size for 3, 6 and 10 output control
Time Ranges for all applications: On Time: 50ms to 600 sec, Off time: 1 to 999 sec
2 modes of operation: can be operated continuously or on demand via external pressure switch
Finger safe terminations: reliable electrical connections and increases safety
RoHS construction: suited for global applications
Supplied on metal chassis: for mounting directly in a NEMA 4 box
Retrofit models available: for direct drop in replacement of former product
SPECIFICATIONS
INPUT:
Input Voltage: 95 – 265 VAC 50/60 Hz
Power Consumption: 6.30 VA max plus load
Circuit Protection: 3.15A fast acting fuse and 72J metal-oxide varistor at input
OUTPUT:
Output: Solid state, 150VA max
Off State Leakage 1.5mA max
On State Voltage Drop: 1.5V max
ENVIRONMENTAL:
Operating Temperature: -40 to +150 F (-40 to +66 C) Conformally coated with RTV to protect against moisture, corrosion, and vibration
DISPLAY:
Display: 3 digit, 7 segment, green LED
Indicator LEDs: 5 green SMT (power, cleaning, on time, off time, last output)
TIME DELAY:
On Time: 50 milliseconds – 600 seconds
Off Time: 1 – 999 seconds
Resolution: 10ms (50ms – 1 0 sec), 100ms (10sec – 100sec), 1sec (100sec – 600sec)
Accuracy and Repeatability: ±3% over temperature and voltage range
Default Settings:
On Time: 50 milliseconds
Off Time: 15 seconds
Last Output: Max. No. of Outputs
