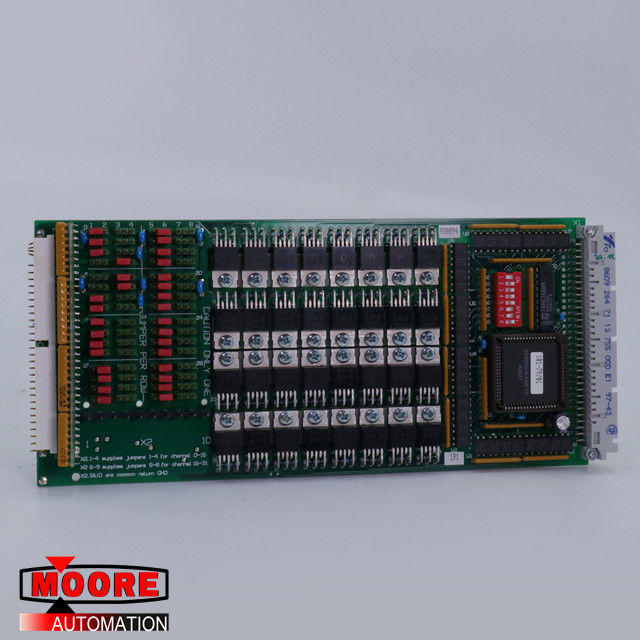

ASM FICO 4552144 Output Card
| Brand/Manufacturer |
ASM/USA |
| Part Number |
FICO 4552144
|
| Alternate Part Number |
FICO 4552144
|
| Description |
Output Card |
| Dimennsions |
16.5cm x 8.4 cm x 4.0 cm |
| Weight |
0.33kg |
