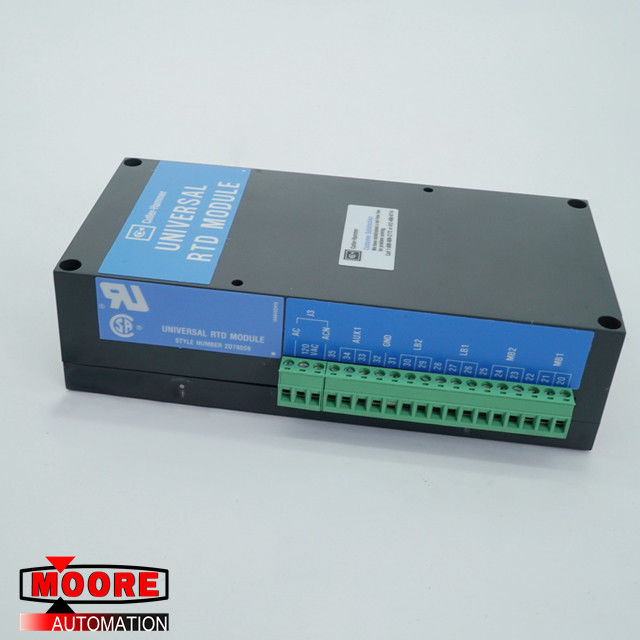

2D78559 2D78559G01 CUTLER - HAMMER Universal RTD Module
  • 2D78559 2D78559G01 CUTLER - HAMMER Universal RTD Module

2D78559 2D78559G01 CUTLER - HAMMER Universal RTD Module

Place of Origin USA
Brand Name CUTLER-HAMMER
Certification CO.CQ
Model Number 2D78559 2D78559G01
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
2D78559 2D78559G01
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
CUTLER-HAMMER
Weight:
4lbs
High Light:

dcs automation

,

dcs modules

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



2D78559 2D78559G01 CUTLER-HAMMER Universal RTD Module



Brand/Manufacturer CUTLER-HAMMER/USA
Part Number

2D78559

Alternate Part Number

2D78559G01

Description Universal RTD Module
Dimennsions 19.5 cm x 11.0 cm x 5 cm
Weight 0.74kg



Product Details

The Universal RTD Module is an electronic Resistance Temperature Detector designed to monitor as a standalone device or in conjunction with the MP-3000. The Universal RTD Module can be used to monitor, for example, transformer temperature and relay that information back to a remote computer or programmable controller. When used in conjunction with the MP-3000, the Universal RTD Module enhances the unit’s motor protection ability. In addition to the MP-3000, the Universal RTD Module can be used with the IQ1000 II, IQ1000 and IQ2000.



The Universal RTD Module can be used to monitor as many as 11 RTD inputs-four groups consisting of six motor windings, two motor bearings, two load bearings, and one auxiliary. The Universal RTD Module can be programmed to accept any of the following types of RTD inputs: 10 ohm copper, 100 ohm platinum, 100 ohm nickel, and 120 ohm nickel, per group. The Universal RTD Module transmits information using three conductor shielded cables, with a maximum cable distance of 500 feet (152 m). It can also transmit to an MP-3000, or IQ1000 II using a fiber optic link, with a maximum distance of 400 feet (122 m).



Applications:

Monitors as a standalone device or in conjunction with the MP-3000 Motor Protective Relay

Communications:

Communications are enabled on the Cutler-Hammer PowerNet Network with an optional PONI.



Specifications

Input Power Requirements: 120 Vac (±15%)

Frequency: 50/60 Hz

Power Consumption: 6 VA

Operating Temperature: 0° to 70°C (32° to 158°F)

Storage Temperature: -20° to 85°C (-4° to 185°F)

Humidity: 0 to 95% R.H. noncondensing

Enclosure: Type 1
