| Place of Origin | GERMANY |
| Brand Name | HIRSCHMANN |
| Certification | CO.CQ |
| Model Number | RS20 |

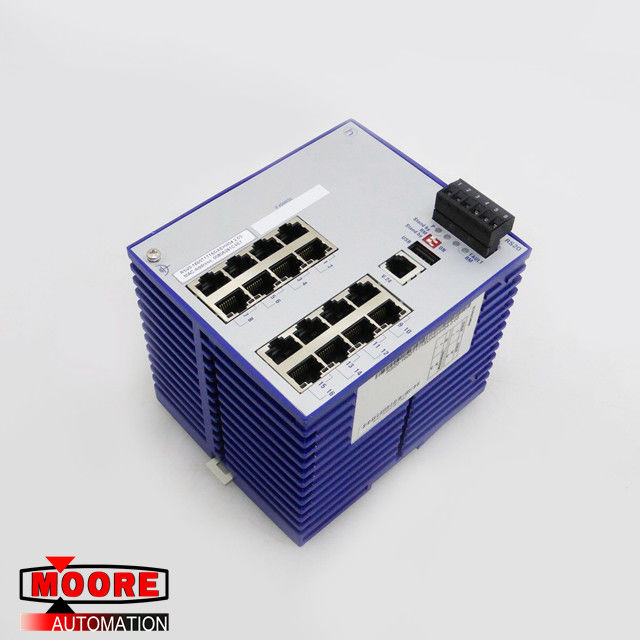

RS20 HIRSCHMANN Compact OpenRail Fast Ethernet Switch 4-25 ports
| Brand/Manufacturer | HIRSCHMANN /GERMANY |
| Part Number |
RS20 |
| Alternate Part Number |
RS20 |
| Description | Compact OpenRail Fast Ethernet Switch 4-25 ports |
| Dimennsions | 11.0 cm x 13.1 cm x 11.1 cm |
| Weight | 0.6kg |
Product Details
Product description
Description: 16 port Fast-Ethernet-Switch, managed, software Layer 2 Enhanced, for DIN rail store-and-forward-switching, fanless design
Port type and quantity: 16 ports in total; 1. uplink: 10/100BASE-TX, RJ45; 2. uplink: 10/100BASE-TX, RJ45; 14 x standard 10/100 BASE TX, RJ45
Type: RS20-1600T1T1SDAEHH09.0.
Order: No. 943 434-023
More Interfaces
Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
V.24 interface: 1 x RJ11 socket
USB interface: 1 x USB to connect the AutoConfiguration Adapter ACA21-USB
Network size - length of cable: Twisted pair (TP) 0 m ... 100 m
Network size - cascadibility:
Line - / star topology any
Ring structure (HIPER-Ring) quantity switches 50 (reconfiguration time < 0.3 sec.)
Power requirements
Operating voltage: 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
Current consumption at 24 V DC: 392 mA
Current consumption at 48 V DC: 196 mA
Power output in Btu (IT) h: 32.1
Software
Management: TFTP; LLDP (802.1AB); V.24; HTTP; Traps; SNMP v1/v2/v3; Telnet
Diagnostics: Management Address Conflict Detection; Address Relearn Detection; Signal Contact; Device Status Indication; LEDs; Syslog; Duplex Mismatch Detection; RMON (1,2,3,9); Port Mirroring 1:1; Port Mirroring 8:1; System Information; Self-Tests on Cold Start; SFP Management; Switch Dump
Configuration: AutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30); Automatic Configuration Undo (roll-back); Configuration Fingerprint; BOOTP/DHCP Client with Auto-Configuration; AutoConfiguration Adapter ACA21/22 (USB); HiDiscovery; DHCP Relay with Option 82; Command Line Interface (CLI); Fullfeatured MIB Support; Web-based Management; Context-sensitive Help
Security: IP-based Port Security; MAC-based Port Security; Access to Management restricted by VLAN; SNMP Logging; Local User Management
Redundancy functions: HIPER-Ring (Manager); HIPER-Ring (Ring Switch); Media Redundancy Protocol (MRP) (IEC62439-2); Redundant Network Coupling; RSTP 802.1D-2004 (IEC62439-1); RSTP Guards; RSTP over MRP
Industrial Profiles: EtherNet/IP Protocol; PROFINET IO Protocol
Time synchronisation: SNTP server and client
Miscellaneous: PoE (802.3AF); Manual Cable Crossing
Switching: Disable Learning (hub functionality); Independent VLAN Learning; Fast Aging; Static Unicast/Multicast Address Entries; QoS/Port Prioritization (802.1D/p); TOS/DSCP Prioritization; Egress Broadcast Limiter per Port; Flow Control (802.3X); VLAN (802.1Q); IGMP Snooping/Querier (v1/v2/v3)
Ambient conditions
Operating temperature 0 ºC ... 60 ºC
Storage/transport temperature -40 ºC ... 70 ºC
Relative humidity (non-condensing) 10 % ... 95 %
MTBF 45.5 years (MIL-HDBK-217F)
Protective paint on PCB No
