| Place of Origin: | GERMANY |
| Brand Name: | KOLLMORGEN |
| Certification: | CO.CQ |
| Model Number: | DIGIFAS 7200 |

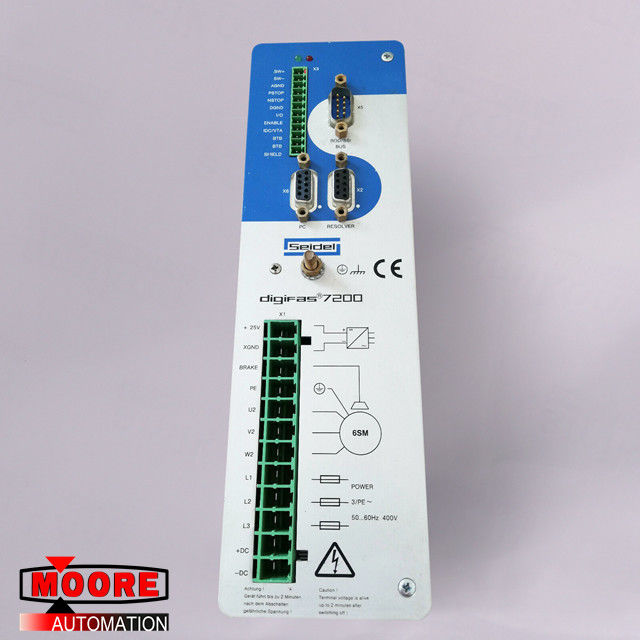

DIGIFAS 7200 KOLLMORGEN Digital servo amplifier 400V 0.9KVA 1.5A SEIDEL
| Brand/Manufacturer | KOLLMORGEN /GERMANY |
| Part Number |
DIGIFAS 7200 |
| Alternate Part Number |
DIGIFAS 7200 |
| Description | Digital servo amplifier |
| Dimennsions | 7.1 cm x 27.5 cm x 23.5 cm |
| Weight | 2.1kg |
Product Details
The digifas 7200 series of digital servo amplifiers are available in several versions:Standard version,BIT CONNECT version,PULSE CONNECT version,PROFIBUS CONNECT version,CAN CONNECT version.
Digital servo amplifier concept
1. Operation and parameter setting, Via the parallel interface of a PC using the special operator software BS7200.
2. Power section:
Mains supply: B6 bridge rectifier with current inrush limiter, directly offthe 3-phase 400V mains
Output stage: IGBT-module with electrically isolated current measurement
Ballast circuit: With electronic monitoring and internal ballast resistor
3. Digital functions:
Current and speed control
Processing of the 14-bit resolver evaluation
Position output (incremental or SSI) with analog setpoint input
Communication with the various interface modules and positional control,if an interface module is installed
4. Easy-to-use functions, adjustable setpoint ramps, limit-switch function, analog monitor outputs
KOLLMORGEN News
AC PM Servo Drive Amplifiers:Servo Motor Phase and Commutation Alignments
The issue with commutation alignment between servo motors and servo drives, especially when the motor and drive are from different manufacturers, can be quite challenging.
In this white paper, Hurley Gill, Senior Applications/Systems Engineer at Kollmorgen, offers tips to help you tackle motor phase-sequencing challenges and reduce start up time.
